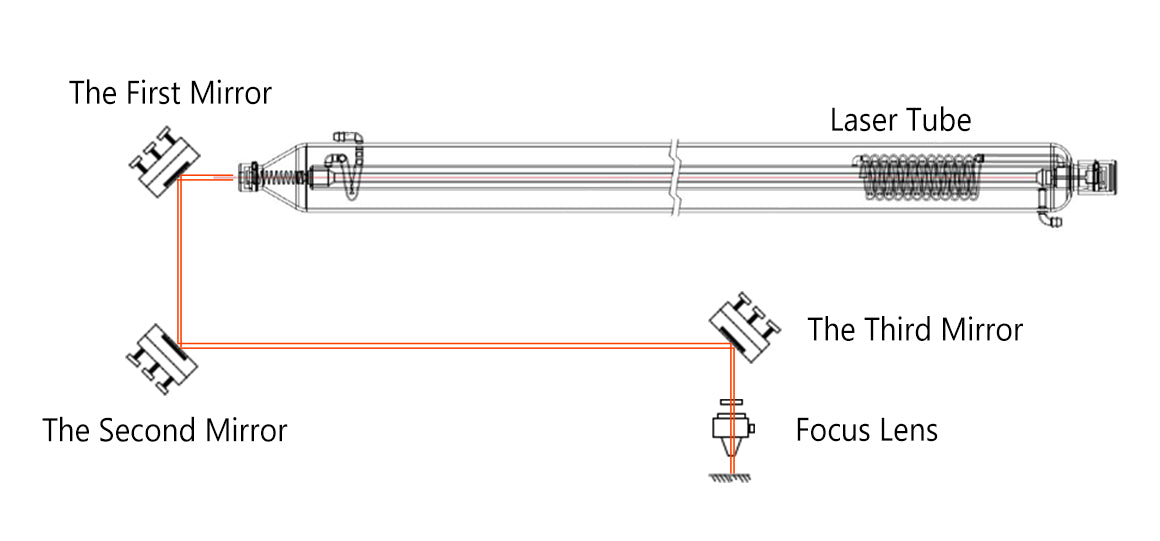

Schematic Diagram of Laser Light Path

In general,a laser machine needs 1 pcs focusing lens and 3 pcs mirrors

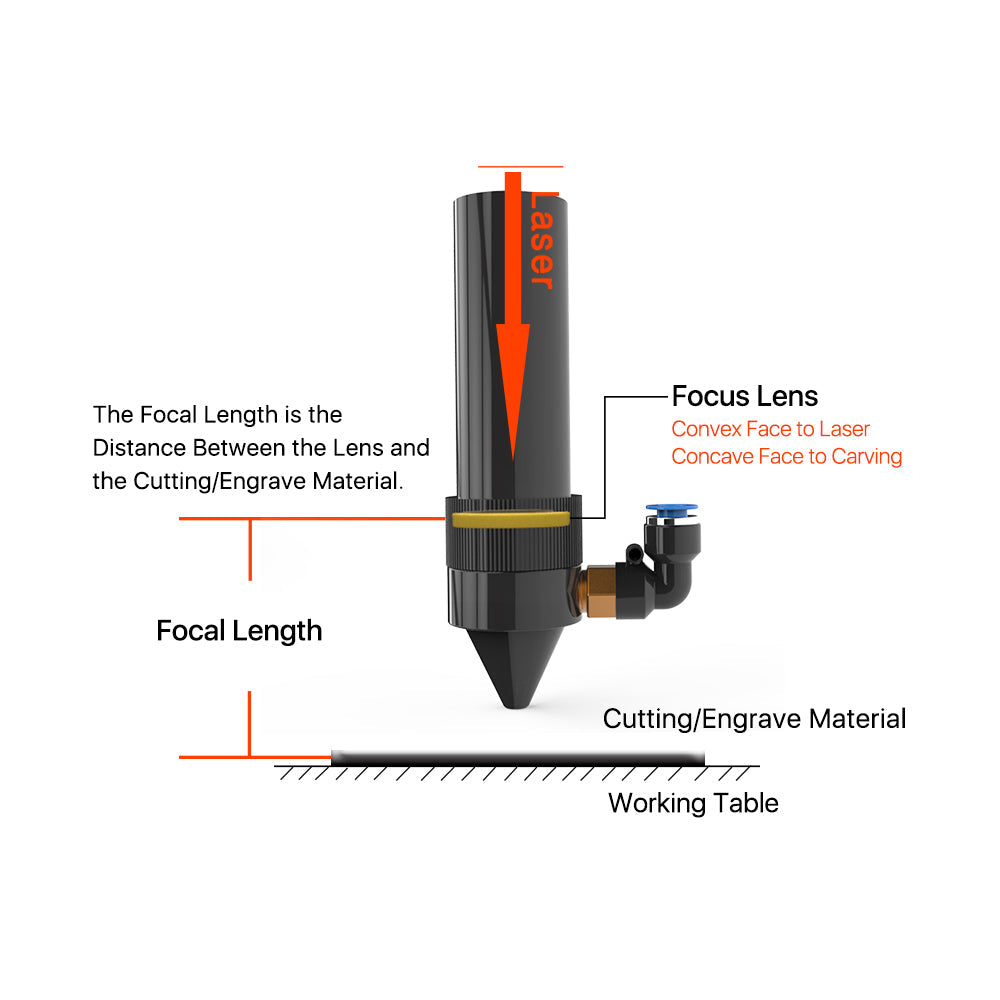

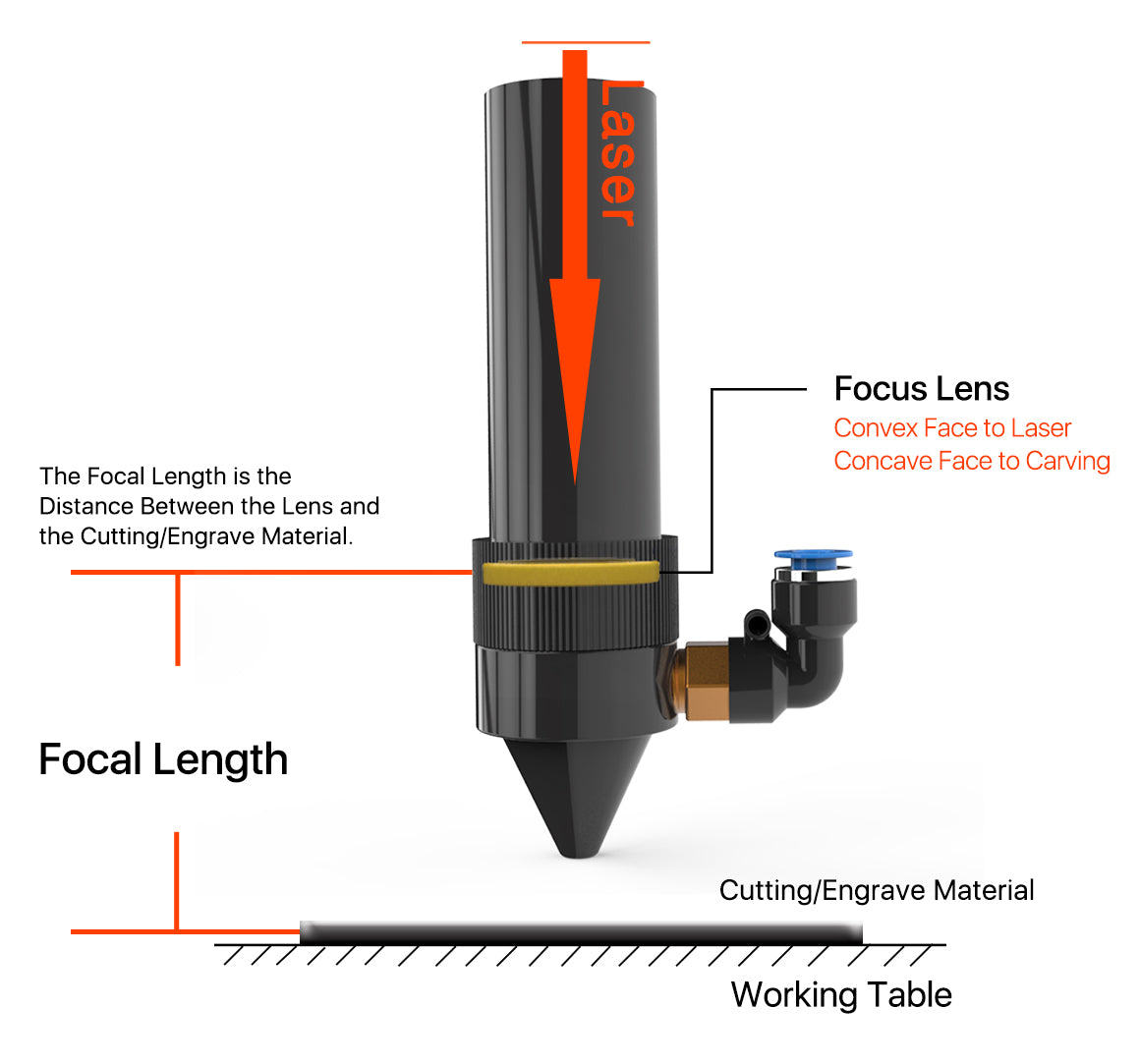

How to Determine Focal Length

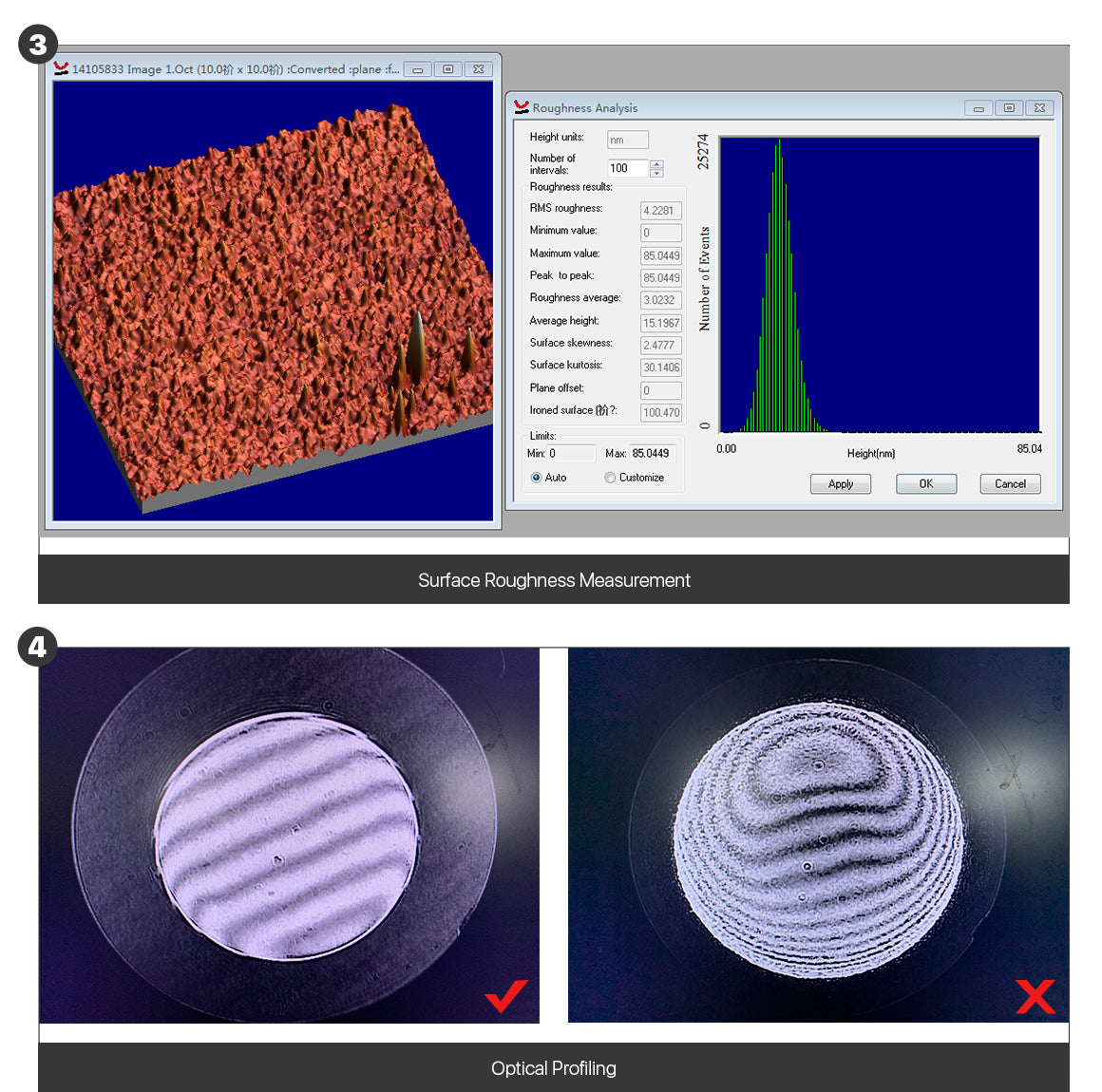

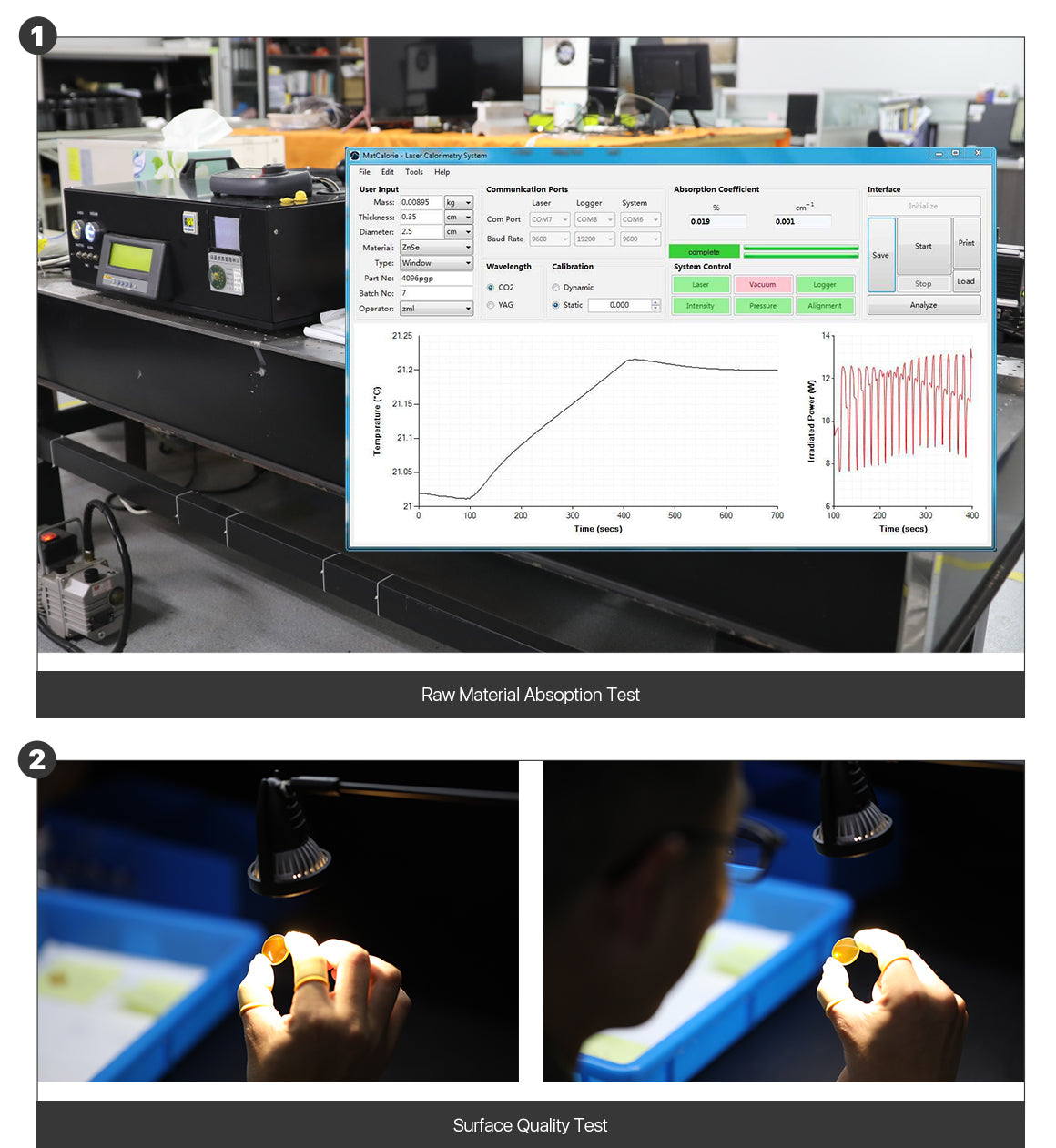

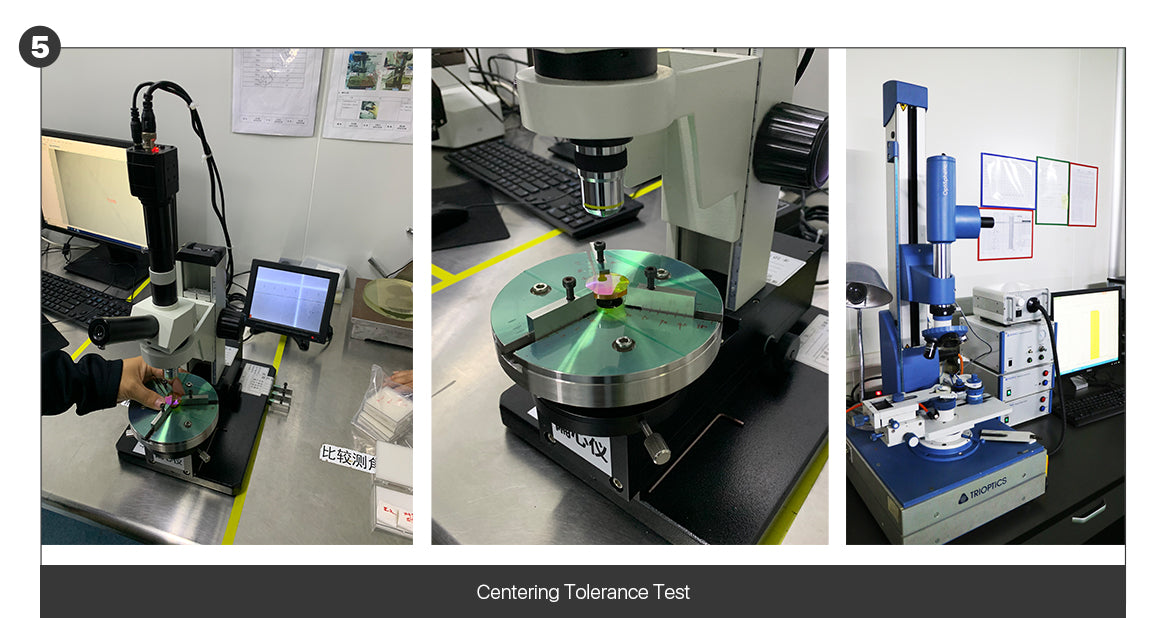

Raylasers Test Process

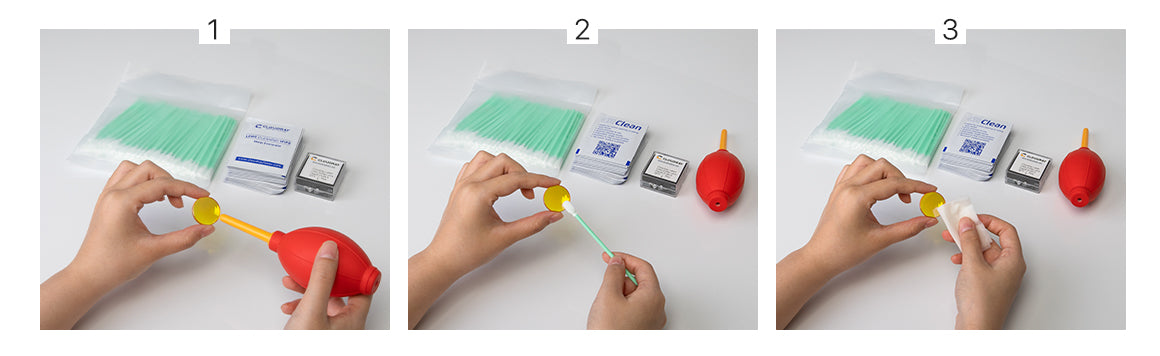

Cleaning instruction

1.Use an air bulb to blow off any loose contaminants. (dust, lint particles)
2. Squeeze a few drops of acetone onto the lens tissue, wetting the complete optic’s diameter. (smudges, fingerprints)
3. Using the cotton swab and distilled vinegar, wipe the lens. Immediately use a wet cotton swab to remove any acetic acid, then clean with a clean dry cotton swab. (spittle, oils)

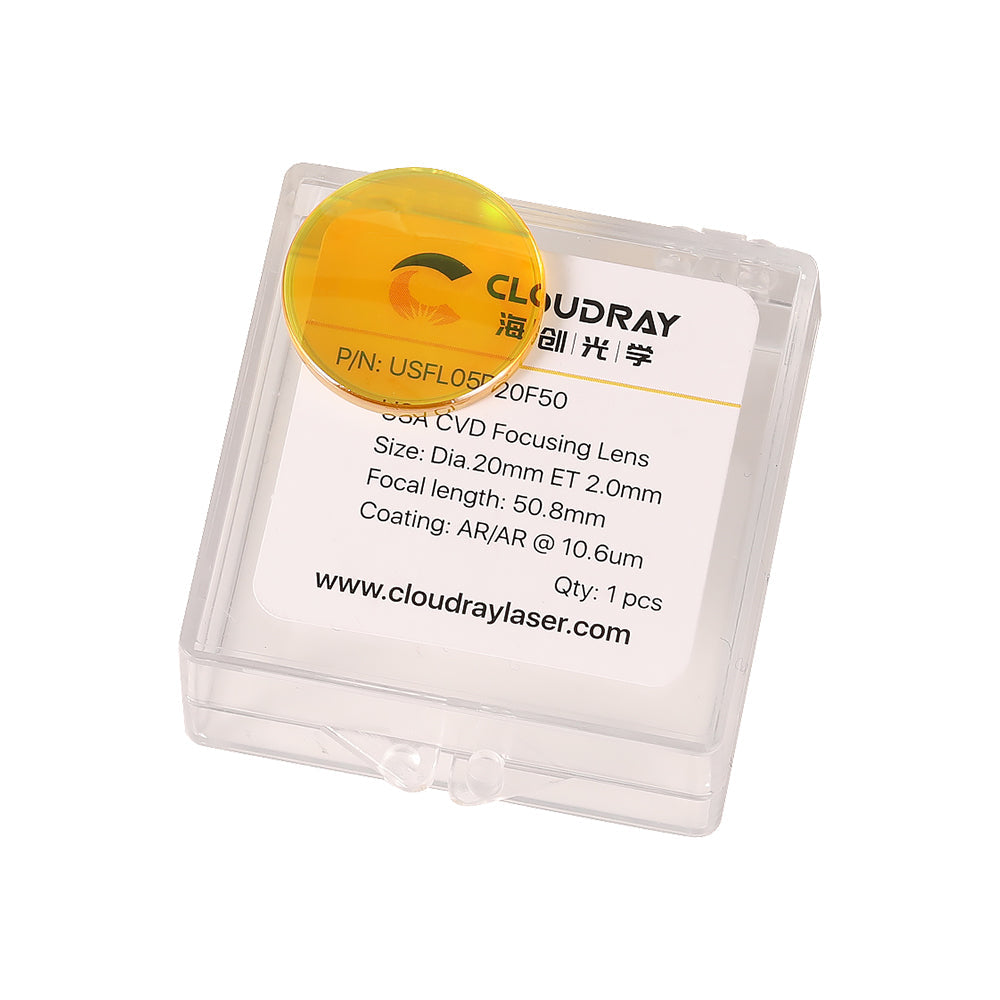

Packing List—Sample Photo
