Wireless Handle BWK301R for RDC64XXG

The Wireless Operating Panel BWK301R consists of two parts: wireless panel and wireless receiver. Wireless panel and wireless adapter communication, wireless receiver connection to RD motion controller, user can control the cutting process reliable within a certain range (10 -40 m) through the wireless panel, easy to operate. The system allows the user can control the system real time in the production process, improving the working efficiency and easy to use and reliable. Parallel working with controller operation panel, there is no interference with each other.

Wireless controller BWK301 only supports communication with RDC64XXG motherboard.

1.Control the start and stop of the cutting process;
2.Control board reset;
3.Follow open / close, blowing open / close, auxiliary gas on / off, speed control;
4.Shooting, positioning, borders, back to stop, cancel and other operations;
5.Control the movement of X, Y, Z, U axis;
6.Connection instructions, power instructions and status display;
7.One-to-one pairing of transmitter and receiver, no interference with each other;

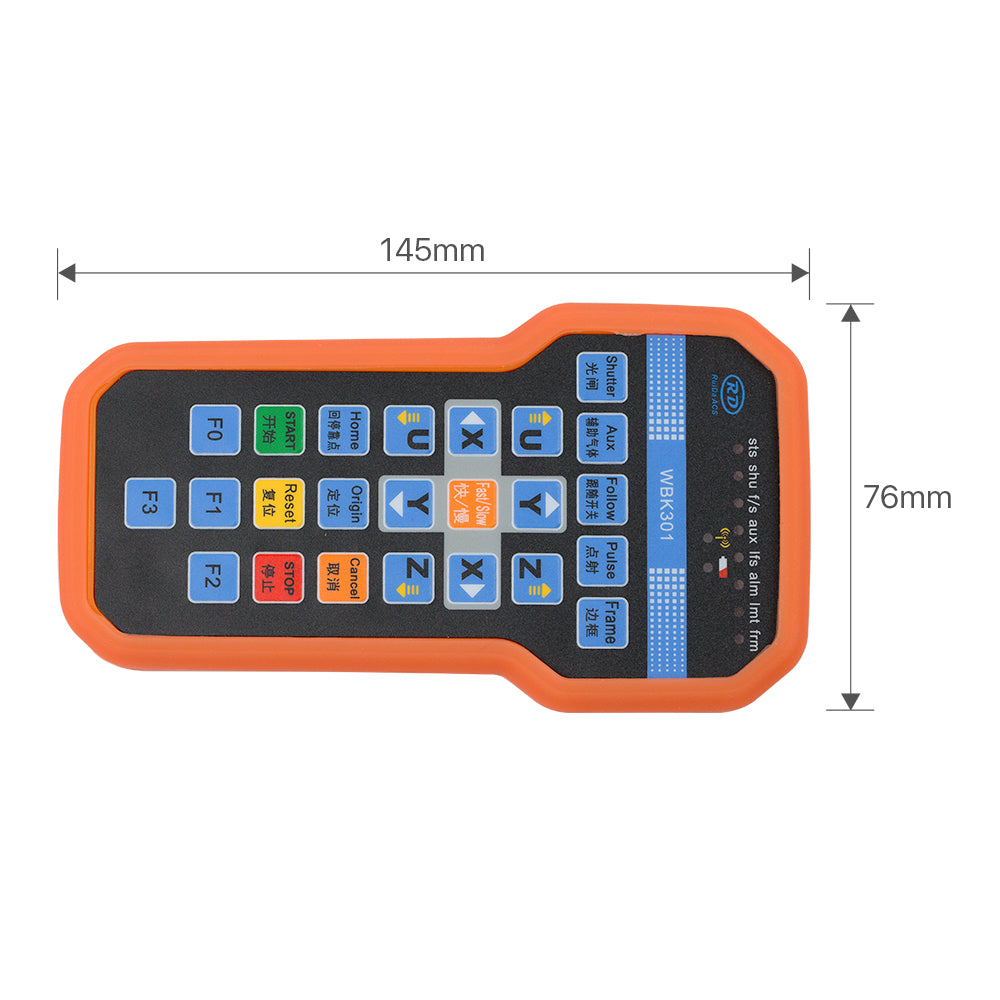

Dimension

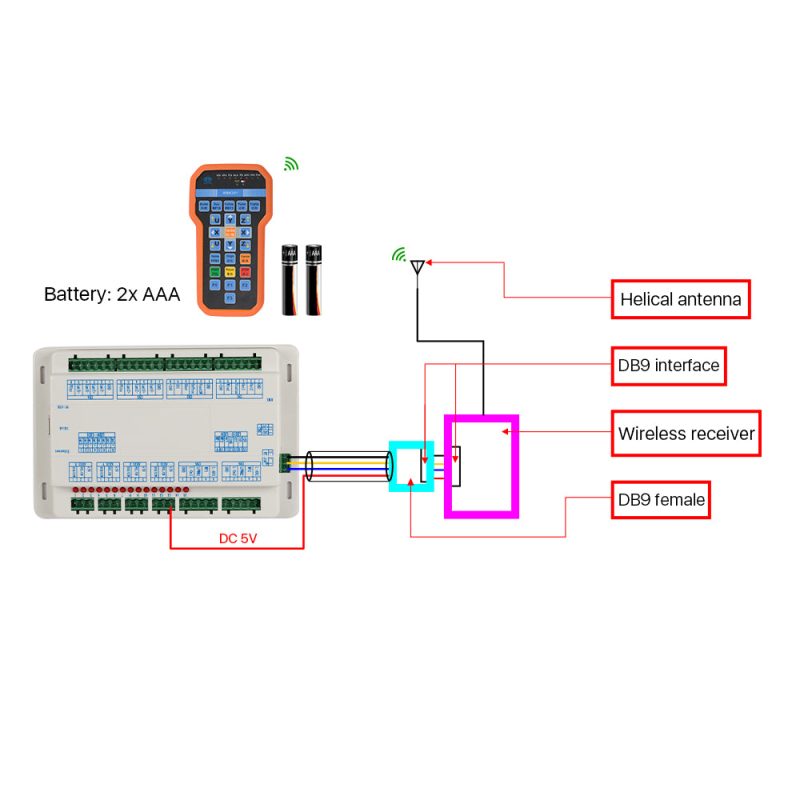

Wiring Diagram

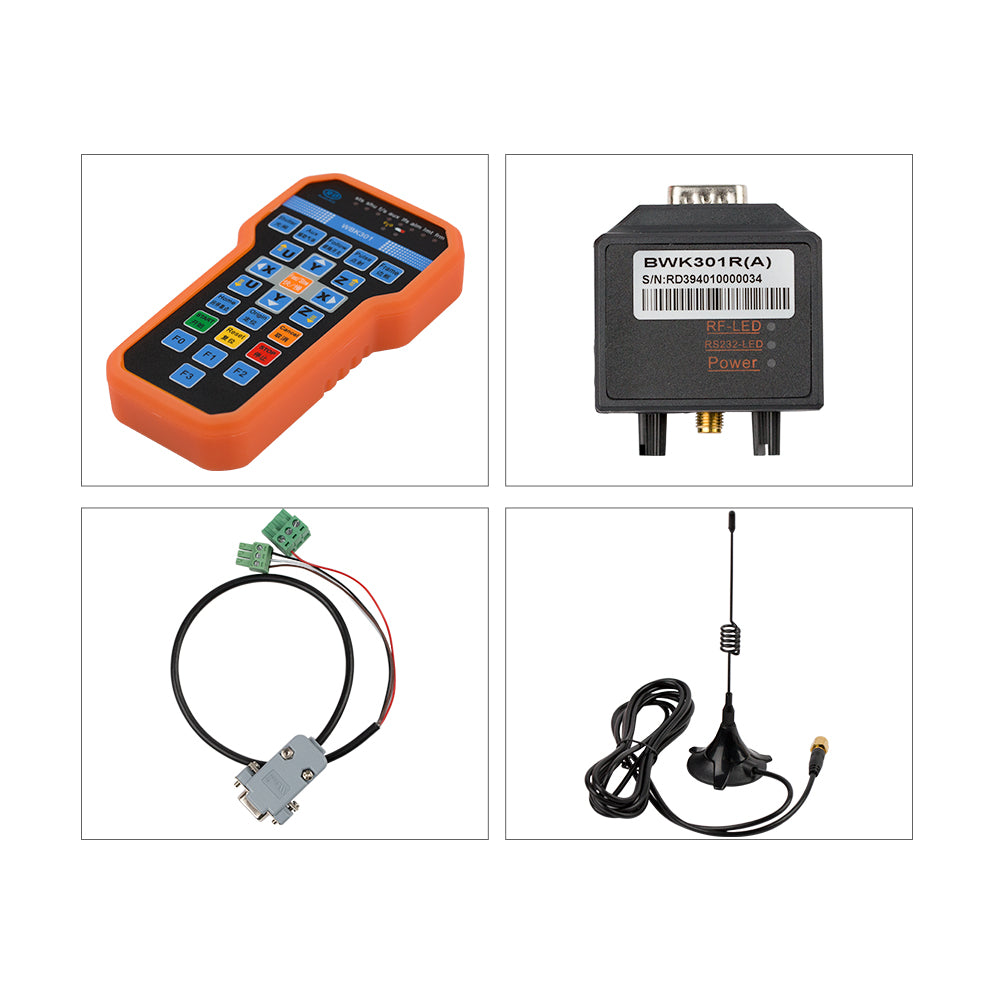

Product structure

Technical parameter

1) Wireless communication range: 40 meters;
2) Standby time: more than 1 month;
3) Product accessories: DB9 female to 2 3PIN connection cables (one 3.81mm, one 2.54mm)-40.0cm
4) Wireless handle size: 76mm * 145mm

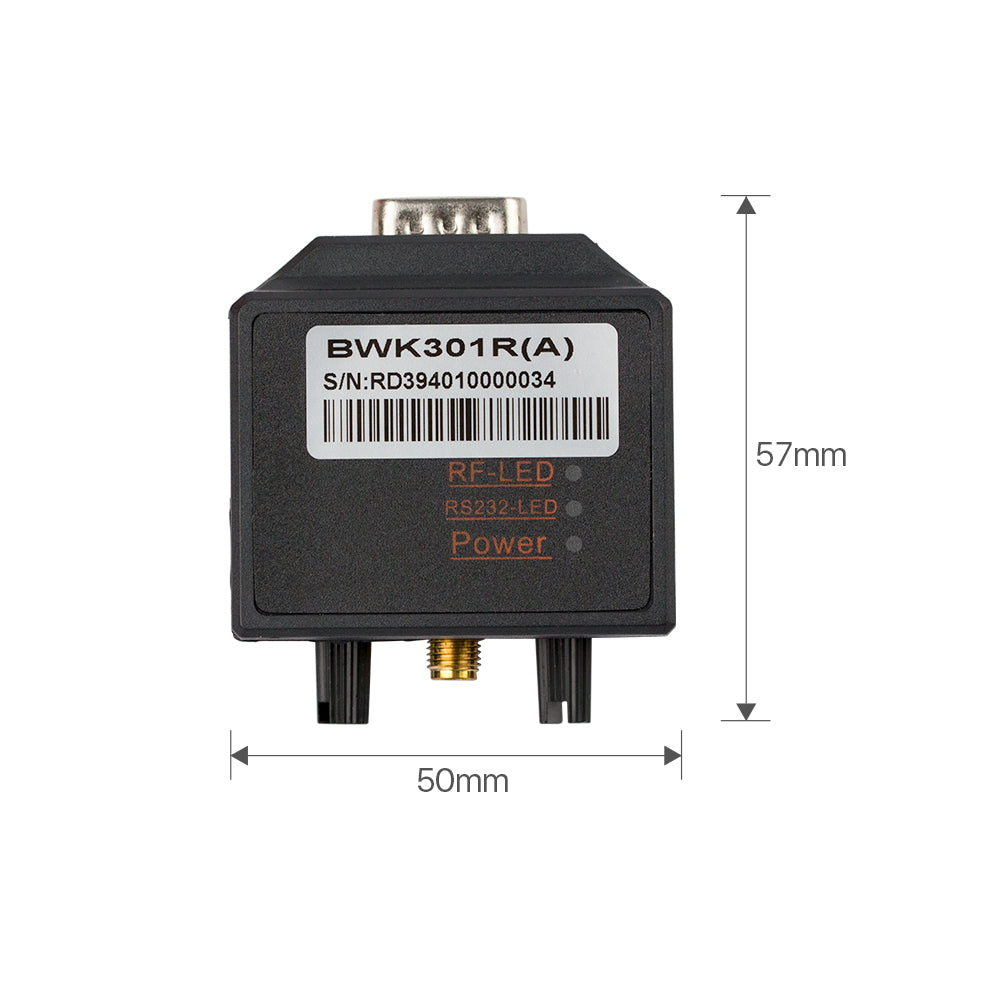

5) Wireless receiver size: 50mm * 57mm
6) Antenna model: Spiral antenna
7) Power supply: 2 AAA batteries
8) Environment: -20 ° ~ 70 °C
