Laser Controller Ruida 6445GT

1.Support up to 4 channels of servo/stepping motor control.
2.Support 1 way extended serial port, which can communicate with EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other devices with RS232 standard interface.
3.Support 4 OC gate outputs, which can directly drive 5V/24 relays.
4.Support mobile APP;
5.Support double-head electric mutual movement control and over-format cutting.
6.Support double-head asynchronous processing.
7.Support processing methods such as large format vision, mark point vision cutting and projection cutting.
8.Support controller and HMI firmware updating by U disk
9.Startup screen can be upgraded through software

Product Dimension

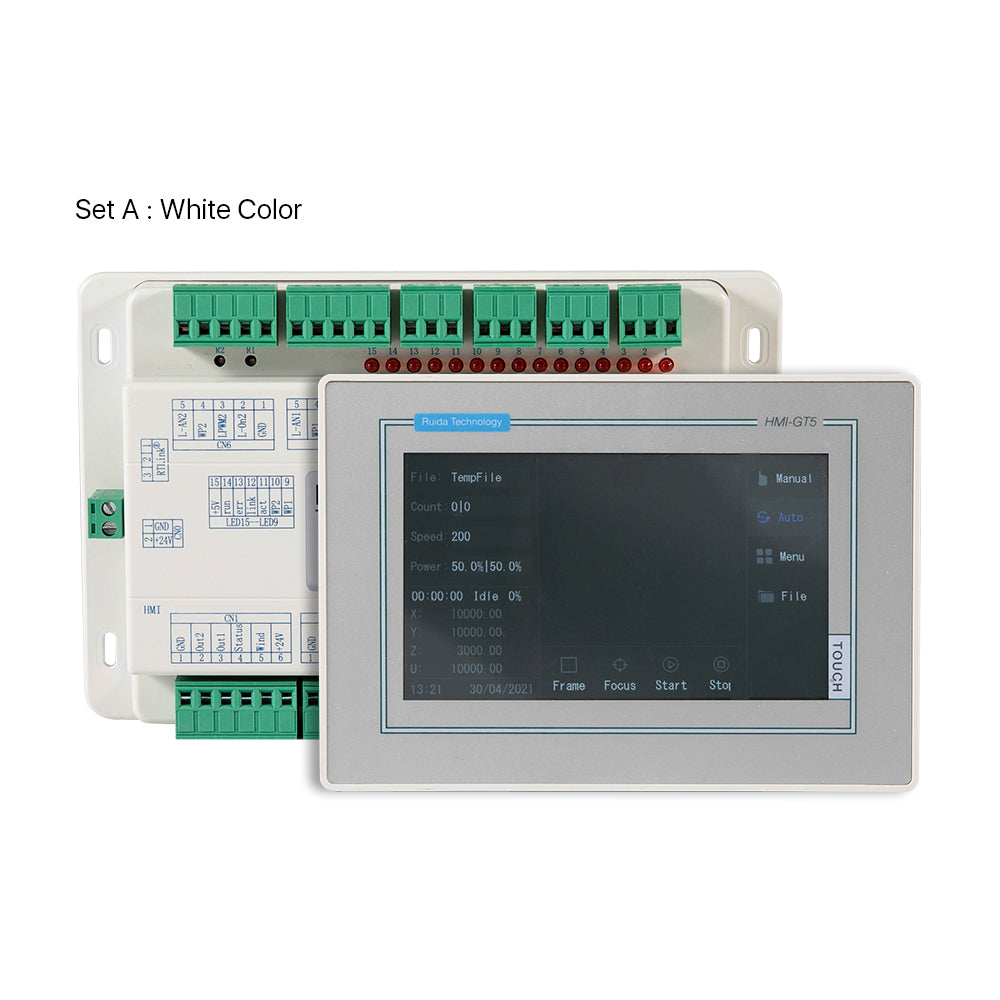

Set A: White Color

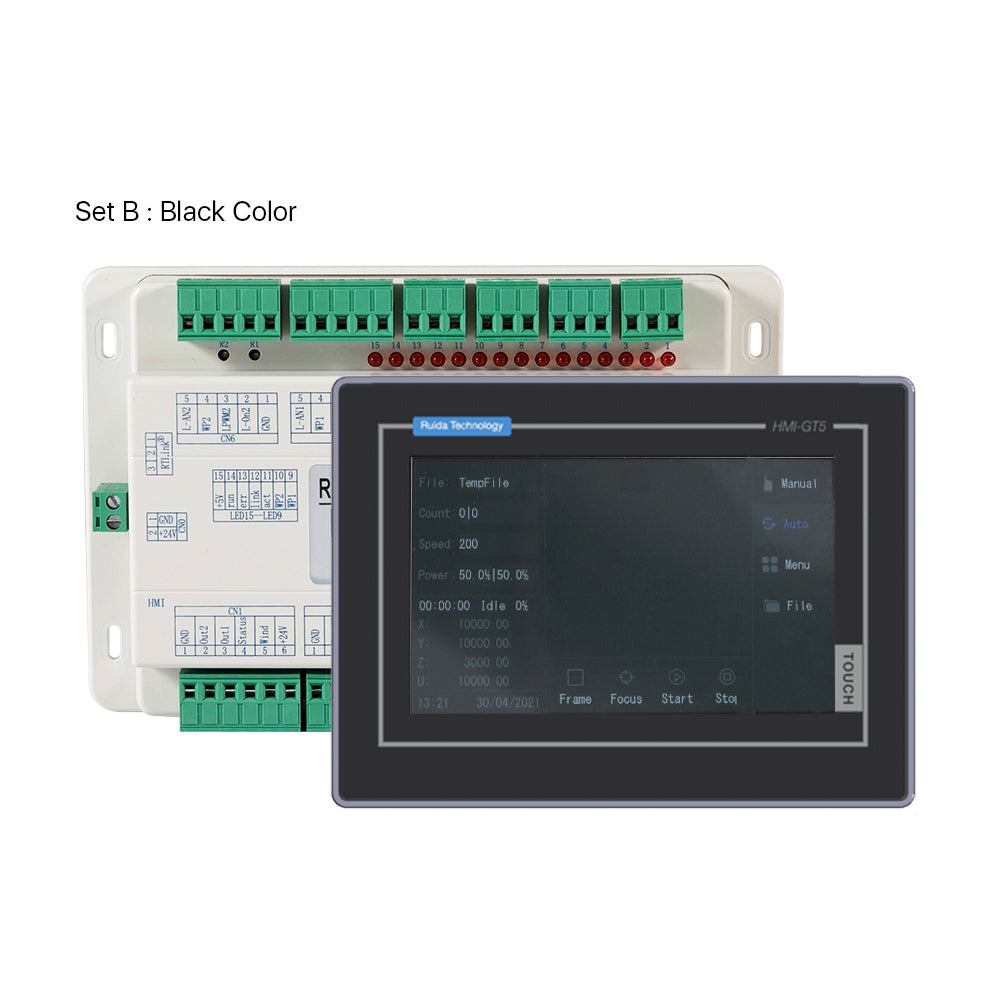

Set B: Black Color

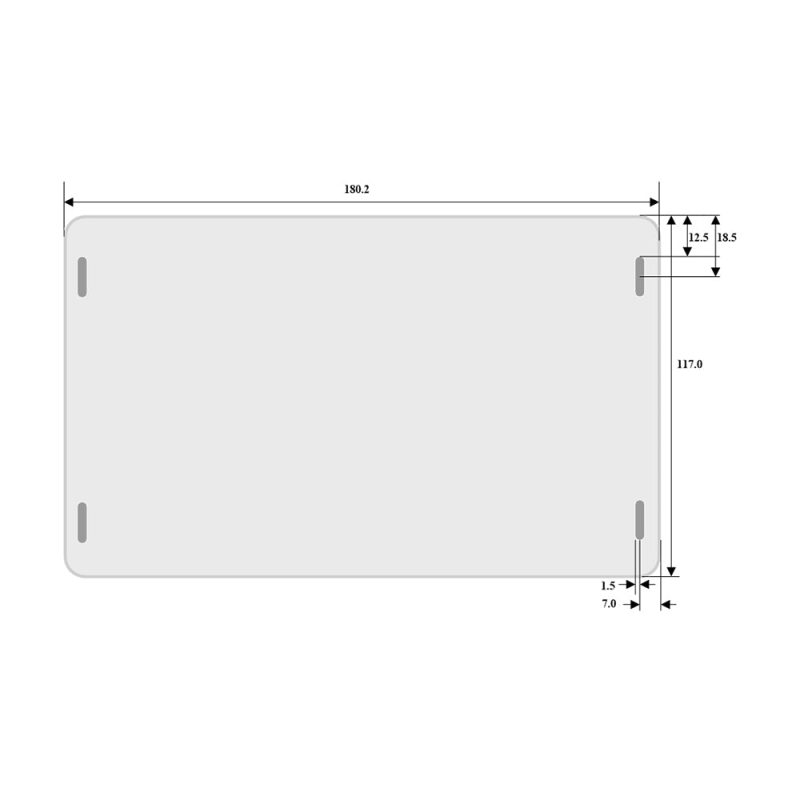

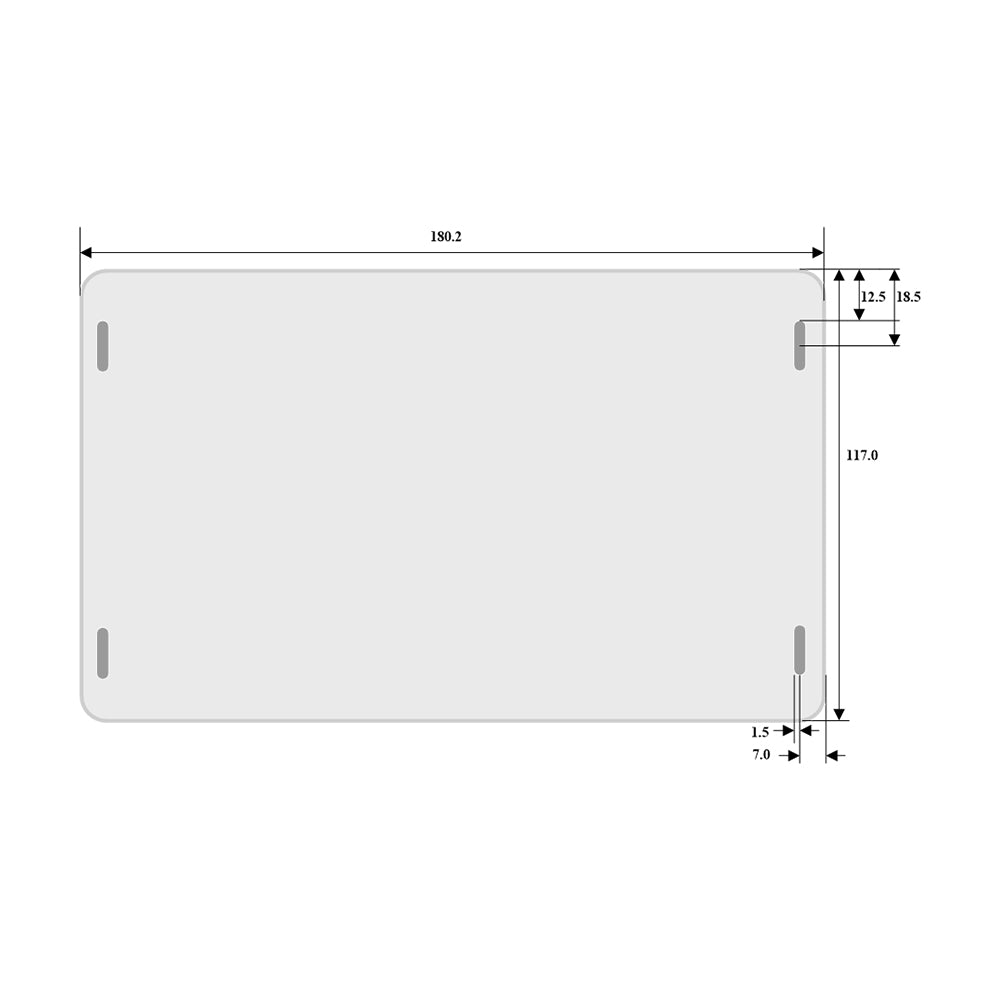

Panel(mm)

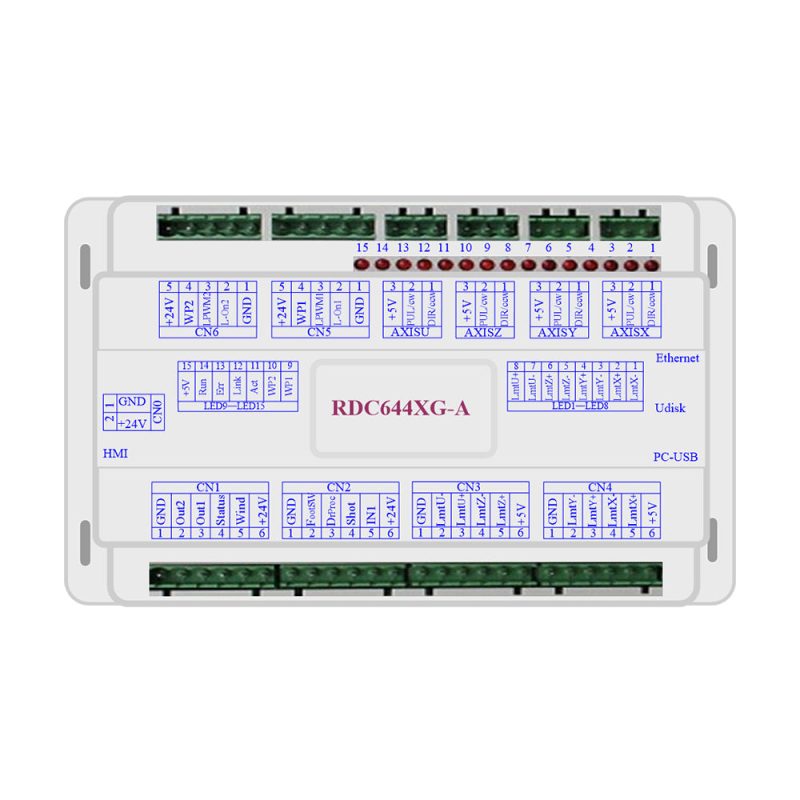

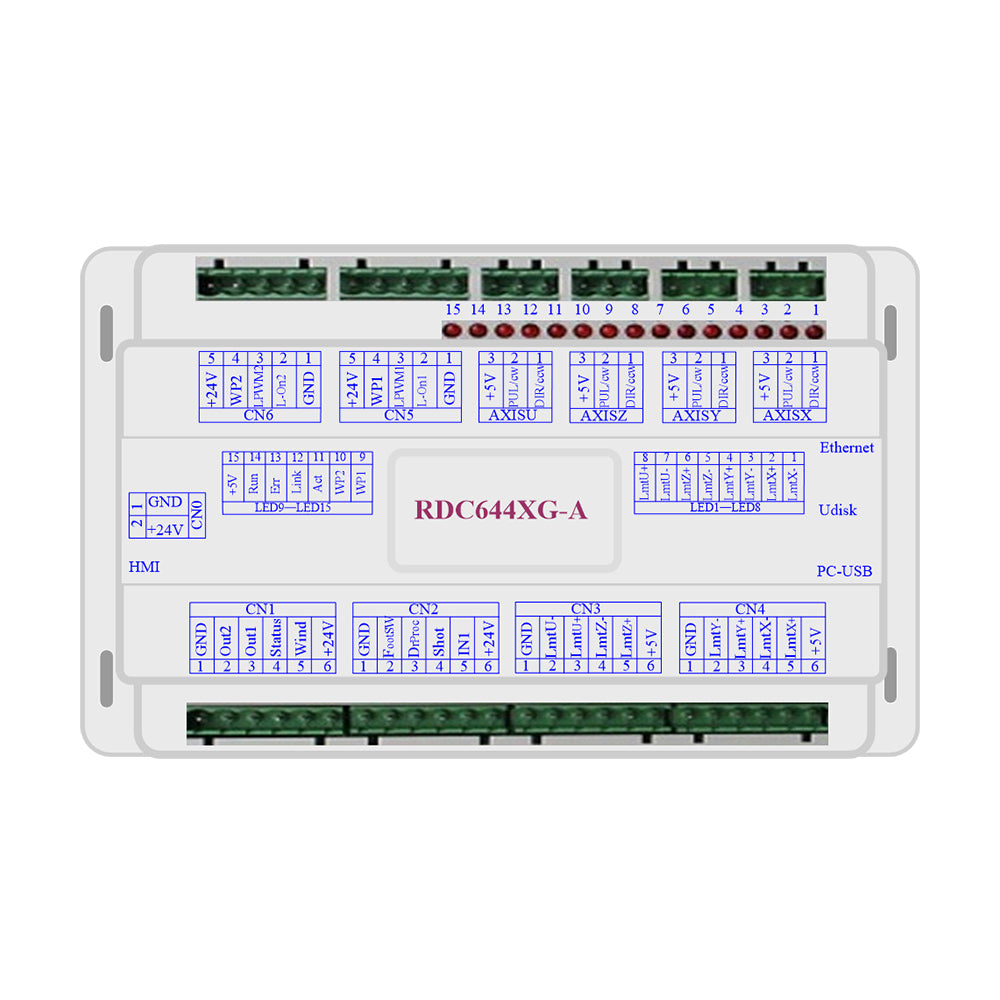

Controller(mm)

Technical Parameter

1. 4 motor interfaces, maximum output is 400KHZ frequency; drive capacity 20mA, common anode interface.
2.Onboard 128M memory.
3.The maximum USB transfer rate is 12M, and the longest distance is 5 meters.
4. 4The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;
5.Linear/arc/B-spline interpolation accuracy +/-0.5 pulse.
6. 4 general photoelectric isolation OC gate output, maximum 300mA drive capability (with continuous current protection), can directly drive 24V/5V DC relay.
7. 4 general optical isolation inputs, compatible with 5V/12V/24V logic level.

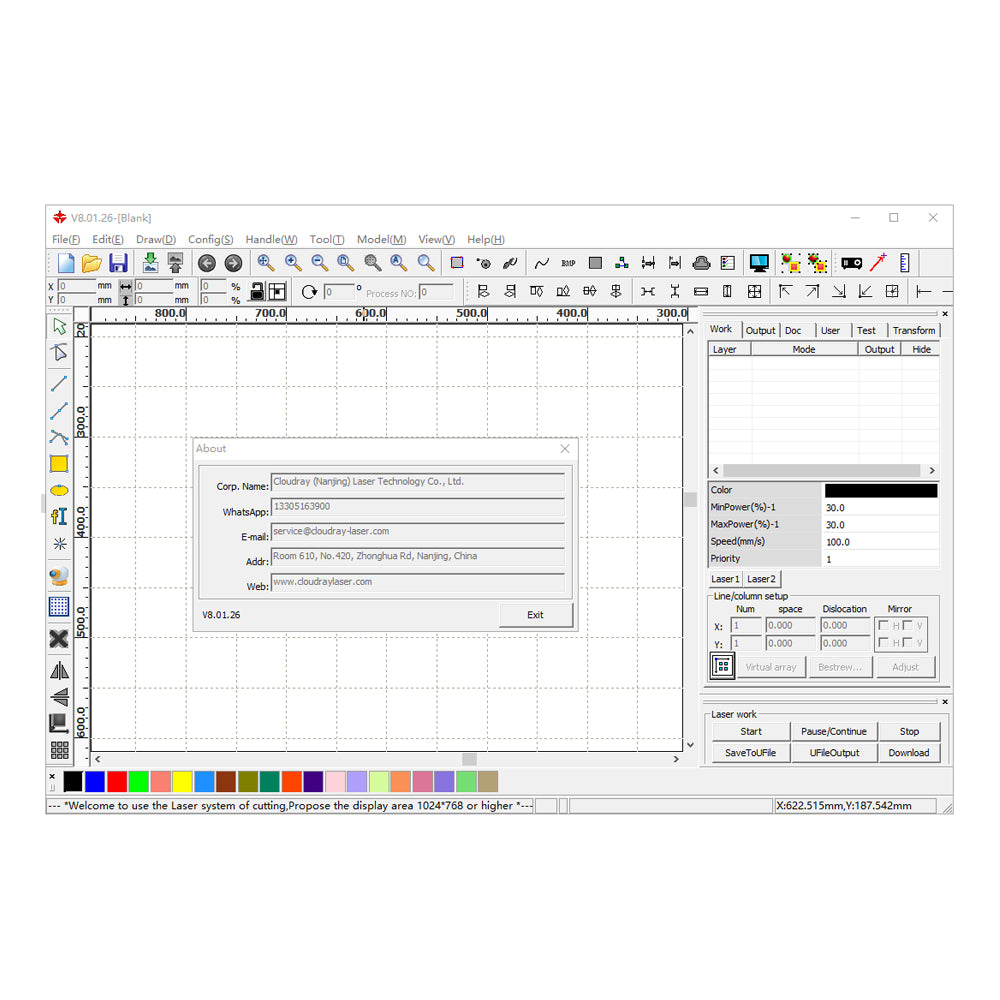

Software RDWorks V8

Multi-Language

What’s included

Connection Diagram
