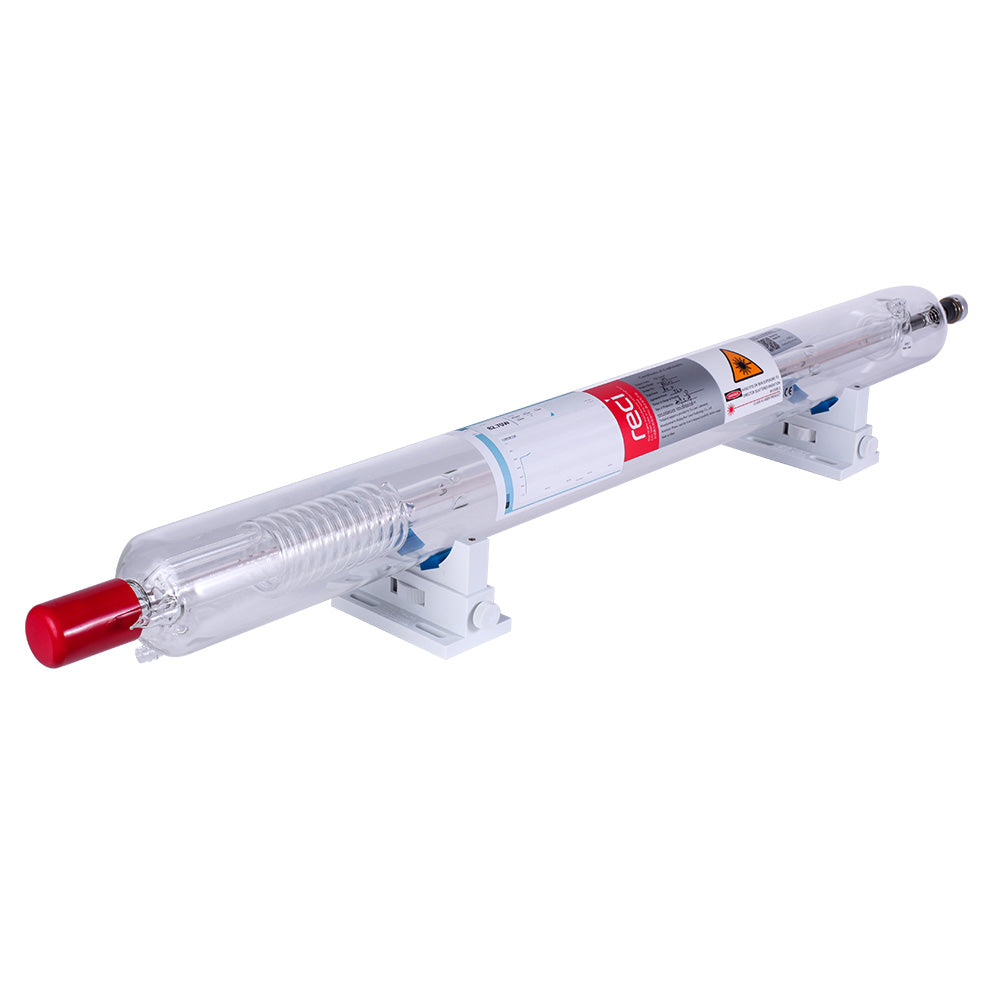

Reci Laser Tube
T Series&W Series
| T Series | W Series |
|
|
Product Structure
T Series & W Series
Technical Parameter
T Series & W Series
| Model | W1 | W2 | W4 | W6 | W8 |
| Reated Power (W) | 75 | 90 | 100 | 130 | 150 |
| Max Power (W) | 90 | 100 | 130 | 160 | 180 |
| Length (mm) | 1050 | 1200 | 1400 | 1650 | 1850 |
| Diameter (mm) | 80 | 80 | 80 | 80 | 90 |
| Catalyze | YES | YES | YES | YES | YES |
| Life Span (Hours) | 10000 | 10000 | 10000 | 10000 | 10000 |
| Warranty (Months) | 18 | 18 | 18 | 12 | 12 |
| Wooden Case (cm) | 138x16x27 | 138x27x28 | 159x41x42 | 183x41x42 | 204x44x46 |
| Weight (kg) | 22 | 23 | 59 | 69 | 90 |
| Model | T1 | T2 | T4 | T6 |
| Rated Power (W) | 75 | 90 | 100 | 130 |
| Maximum Power (W) | 90 | 100 | 130 | 160 |
| Length (mm) | 1100 | 1250 | 1400 | 1650 |
| Outer Diameter (mm) | 65 | 65 | 65 | 65 |
| Catalytic | YES | YES | YES | YES |
| Life Span (Hours) | 8000 | 8000 | 8000 | 8000 |
| Warranty (Days) | 300 | 300 | 300 | 300 |
| Carton Size (cm) | 118x17x19.5 | 131.6×17.4×18.5 | / | / |
Operating Conditions
T Series & W Series
The Instructions of Extended Threaded-tube for Output Lens Protection
Note：
The extended threaded tube is recommended when Multi-layer plywood, PVC materials are to be cut. It should be installed to avoid the gas inside leaking caused by glue expansion, in the circumstance that the temperature of laser tube heads is increasing due to dust around the working environment.
Installation method:
Unscrew the original threaded -tube, and blow off the dust on the lens with the balloon. Then install the extended threaded -tube. The length can be reserved according to the actual requirement with the pliers cutting from the V-groove position.
Operating Conditions
T Series & W Series
1. Watercooling requirements: the cooling liquid is pure water, the flow rate is2-5L/min, and the water temperature is10-50℃.
2.Environmentalrequirements: temperature2-40℃, humidity10%-60%

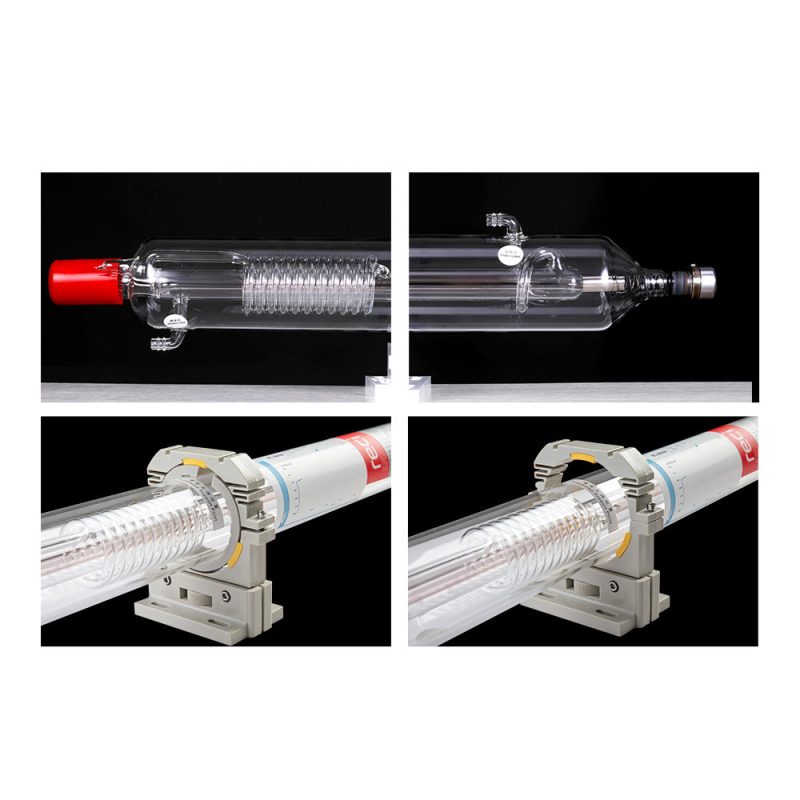

Photos
