♦ Non-contact processing, no damage to products, no tool wear, high-quality marking.
♦ High processing efficiency, controlled by computer, being easy to realize automation.
♦ Processing metal & non-metal materials, especially the materials of high hardness, high melting point and brittleness.
♦ Being qualified for a bad work environment, being with very strong tolerance to dust, shock, impact, humidity, and temperature.
Applicable Fields
Being widely used for figure and character mark & mass production line, such as,
♦ Computer Accessories ♦ Industrial Bearings ♦Clocks and Watches ♦ Operation Integrated Circuit Chips ♦ Aerospace Components ♦ Military Products ♦ Household Appliances ♦ Electronic Products ♦ Hardware Tools ♦ Wire and Cable ♦ Food Packaging ♦ All kinds of Auto Parts ♦ Dies ♦ Jewelry ♦ Tobacco ♦ etc
Technical Parameter

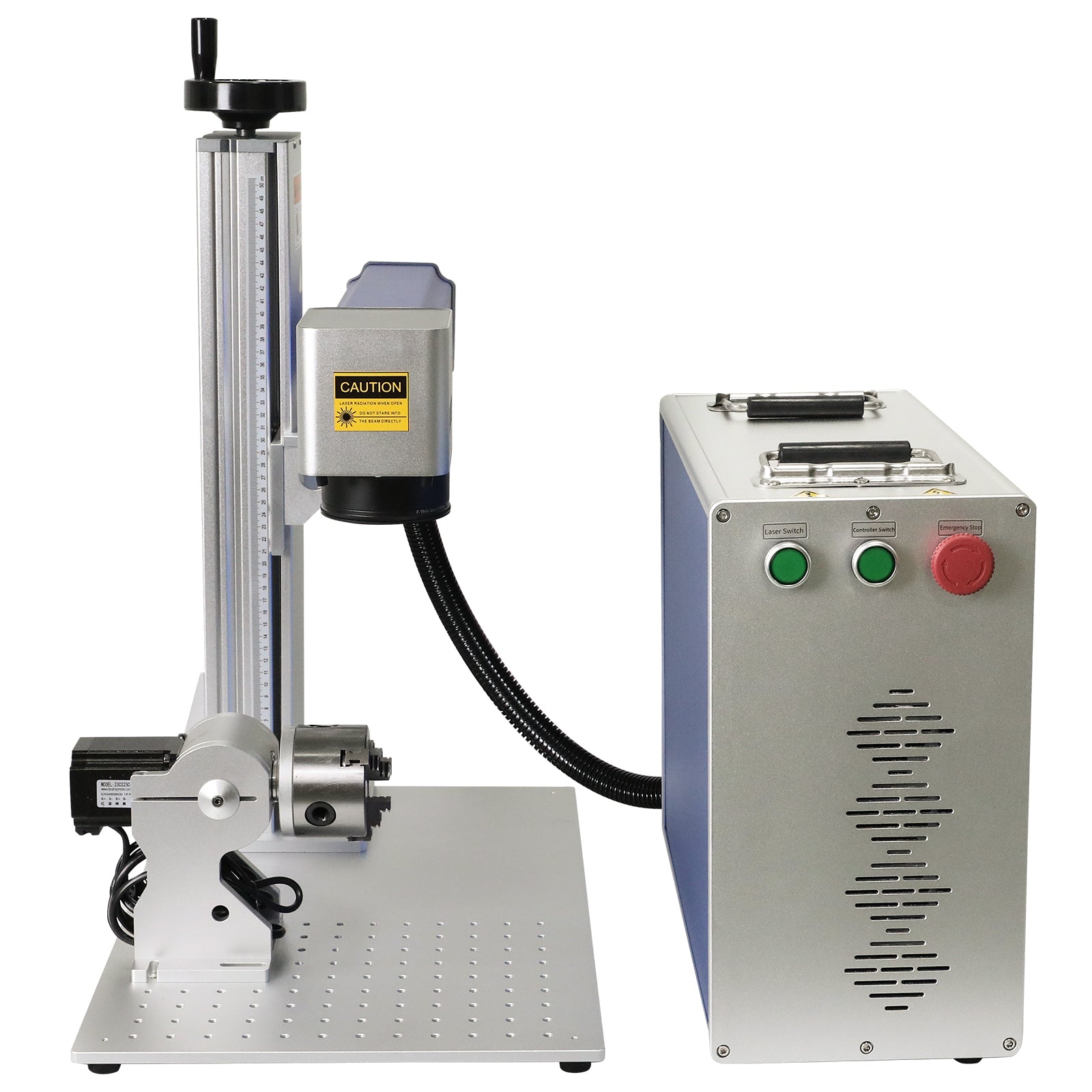

| Product | LiteMarker Fiber Marking Machine |
| Notice | 1. The power plug will be adapted according to the country of delivery. |
| 2. Rotary Attachment Set is suggested to be ordered together with marking machine as we can help you install it to marking machine before shipping. | |
| Model | CLM20F, CLM30F, CLM50F |
| Power | 20W, 30W, 50W, 100W |
| Working Area | 110*110mm,175*175mm,200*200mm,300*300mm |
| Laser Wavelength | 1064nm |
| Beam Quality | ＜2 |
| Max. Marking Speed | 5000mm/s |
| Minimum character | 0.3mm/ Depends on the material |
| Marking Depth | ≤0.5mm/ Adjustable depending on the material |
| Repeating Precision | ±0.002 |
| Power Supply | Optical: AC220V/50Hz,AC110V/60Hz |
| Temperature/Humidity | 0~35℃/ 10~95% |
| Power Consumption | ≤800W |
| Operating System | Win7/ Win8/ Win10 |
| Cooling System | Inbuilt Air Cooling |
| Communication | Standard USB2.0 |
| Format Supported | Graphics,Text,Al,DXF,PLT,Bar Code,QR Code,etc |
| Marking Software | EZCAD |

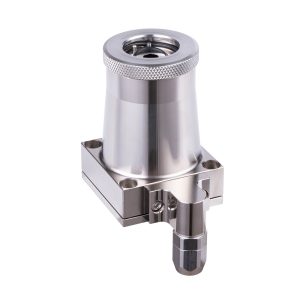

| Rotary | Optional |
| The above parameters are laboratory test results, subject to actual operating conditions. | |

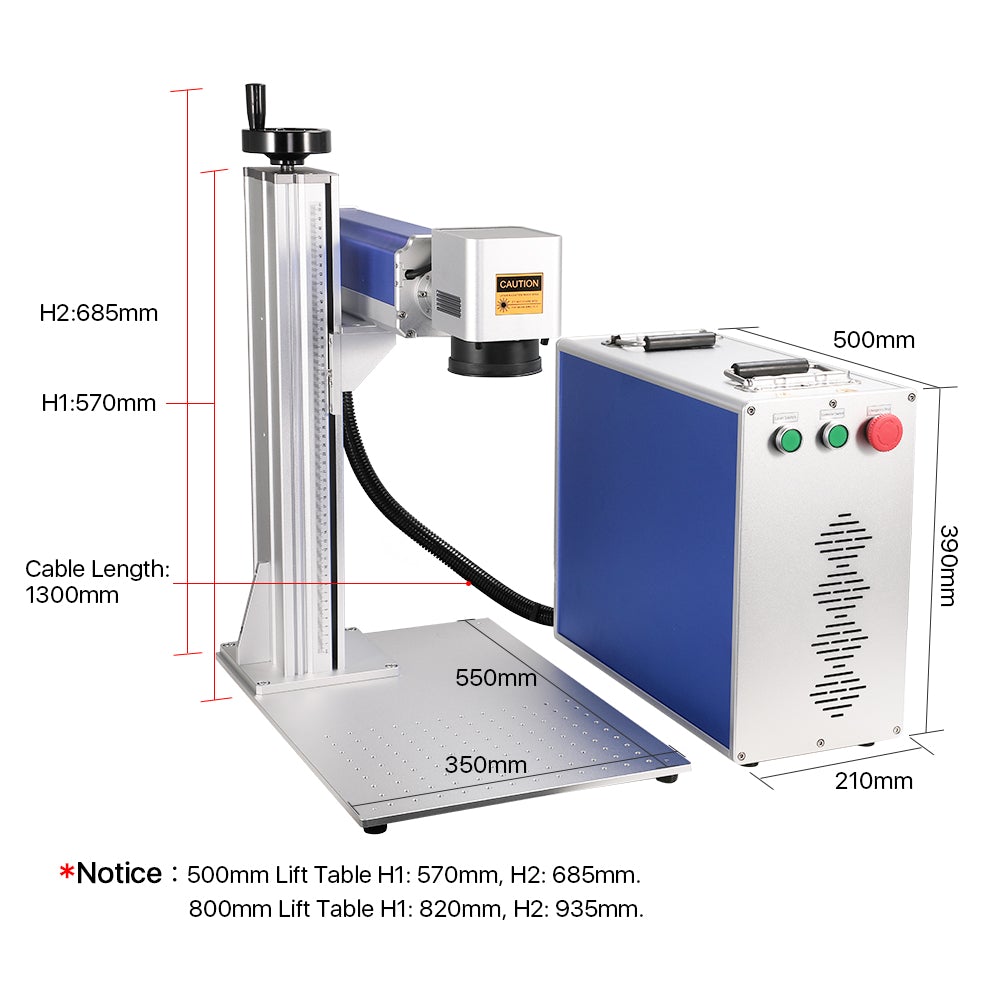

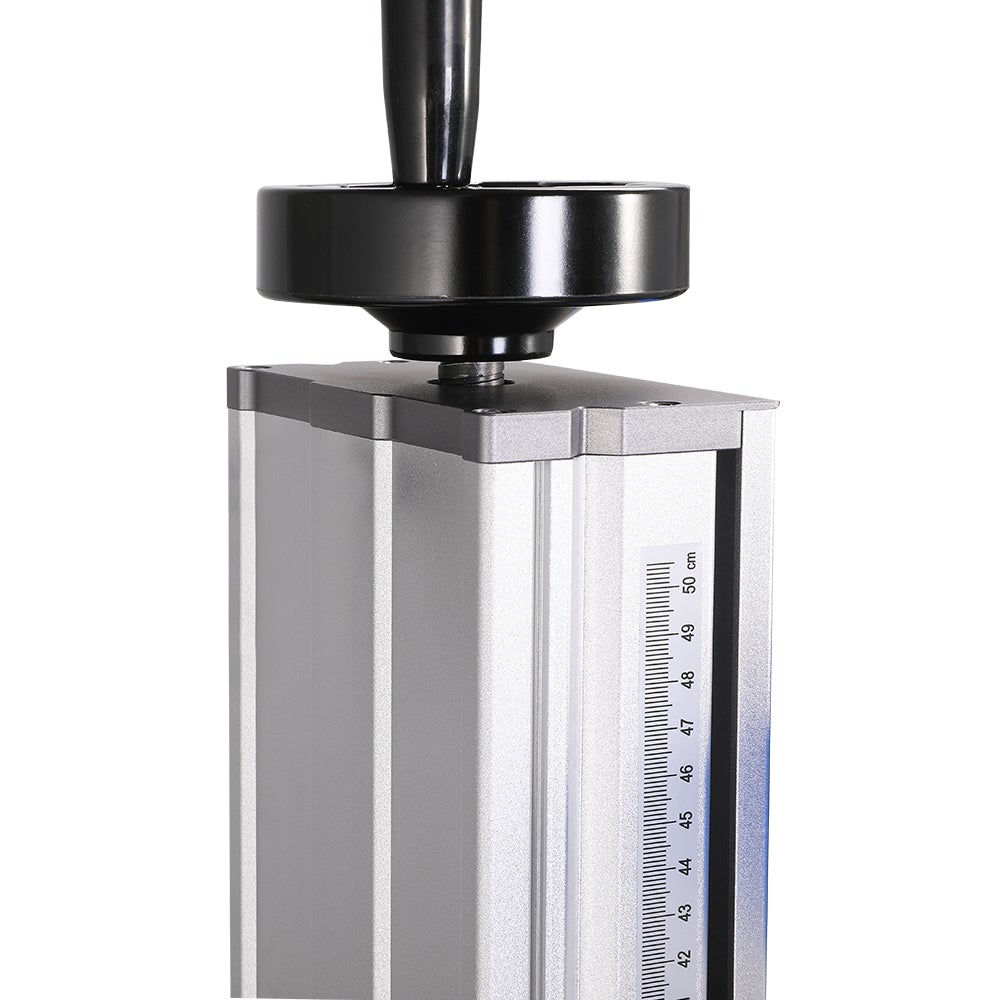

| Lift Table | 500mm | 500mm | 500mm | 500mm | 500mm | 800mm |
| Laser Machine Height | 685mm | 685mm | 685mm | 685mm | 685mm | 935mm |
| Working Area | 110*110mm | 150*150mm | 175*175mm | 200*200mm | 220*220mm | 300*300mm |

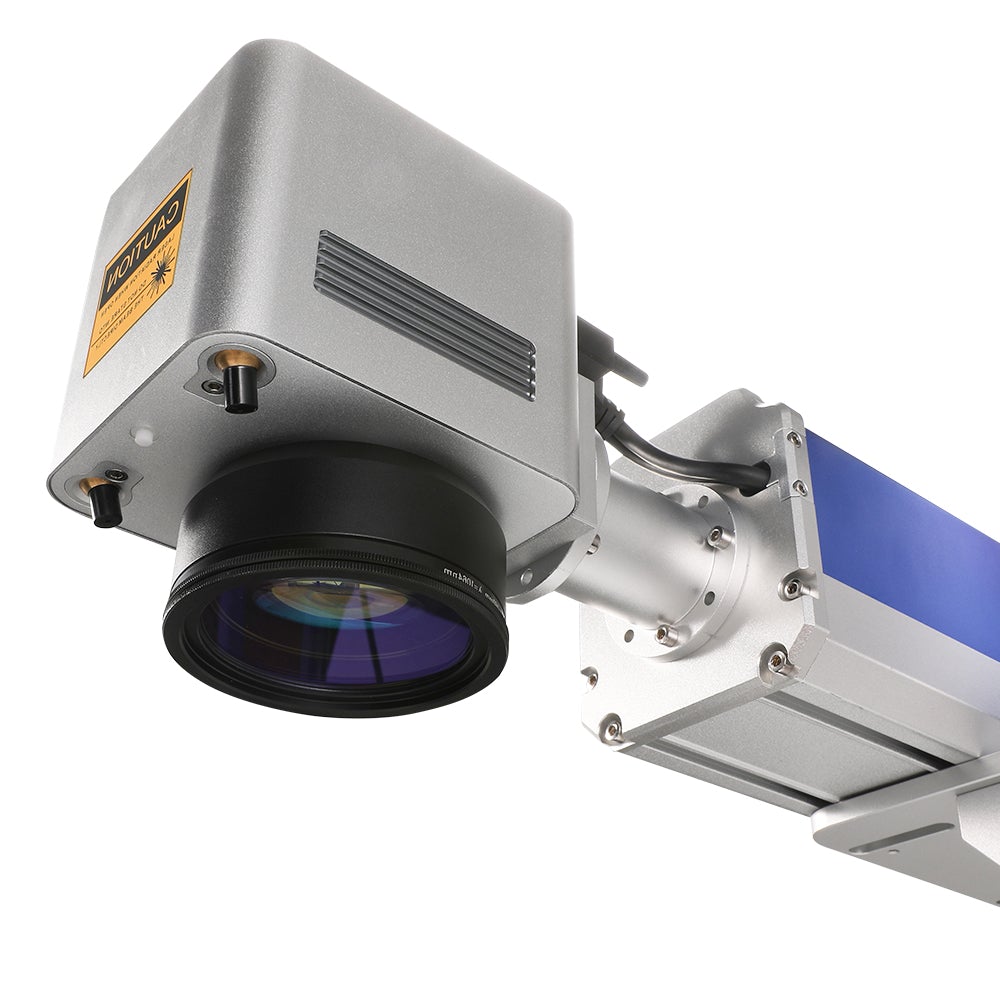

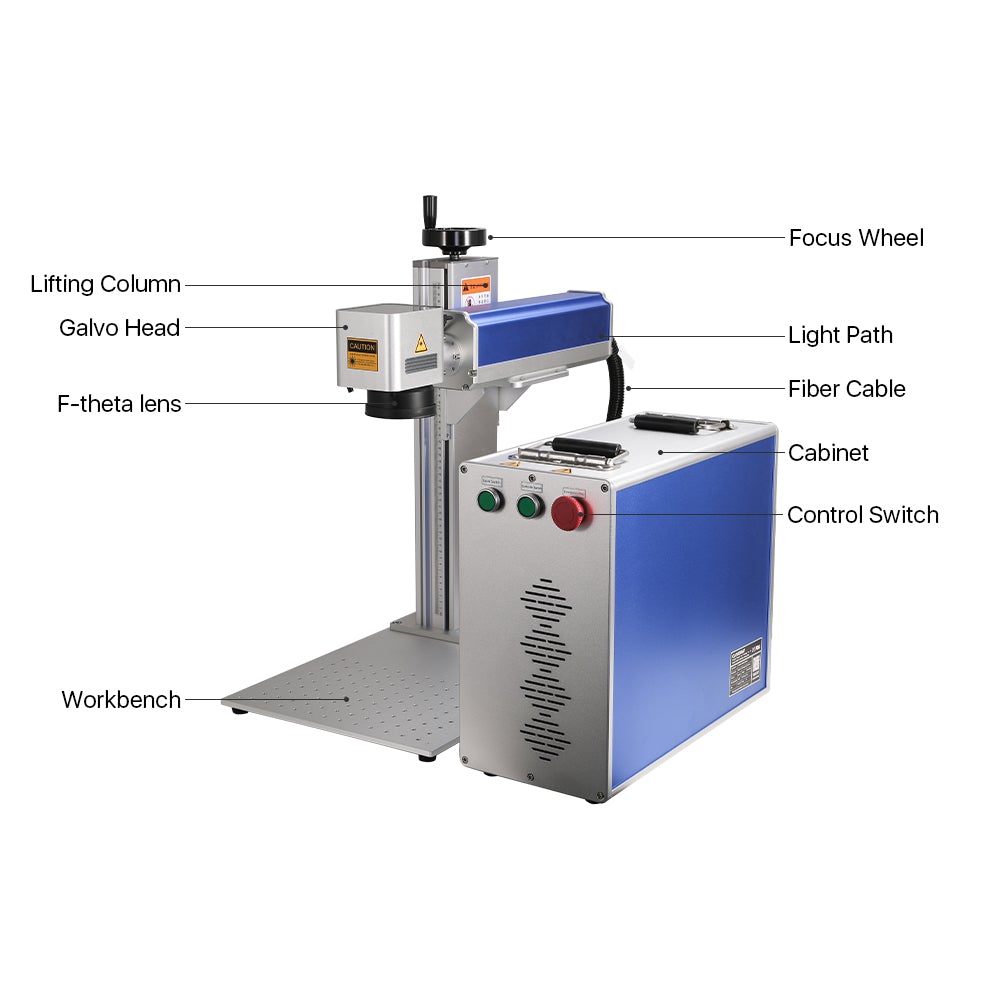

High-speed Galvanometer(Galvo).
♦ Consist of optical scanner and servo controller, adopt new technology, new material meliorative operating principle.
♦ Electric torsion bar replace traditional elastic material’s torsion bar, greatly improve service life and reliability of long time work.
♦ Vastly reduce delay, enhance marking speed, high repetition frequency.
Fiber Laser Transmitter.
♦ Efficient light produced by electricity, consumed power is less than 500W.
♦ Being suitable for subtle and precise marking.
Fiber Laser Power Supply.
♦ 24V output voltage, alternating current.
♦ Being installed in control box of marking machine.
Field Lens.
♦ Excellent focusing capability.
♦ More accurate.
♦ Improve marking quality on rough surface.
♦ Uniform focusing spot.
Three Sets of Switch Power Supply.
♦ Stable switch power supply makes fiber laser output smoothly.
♦ Make alternating current turn into stable direct current, output rectification and smoothing.
High-quality Material.
♦ Durable air plug.
♦ Safer fine copper’s cable core.
Fiber Laser.
♦ 10,0000 hours service life, about 11years.
♦ 24 hours continuous working.
♦ Same effect, excellent stability.
♦ No need to maintain, being suitable for a hostile environment.
Control Card.
♦ Possess the function of graph aligning, red light preview, external transmit to read date.
♦ Being suitable for marking on the fly.
♦ Providing hundreds of automatic marking and feeding programs.
♦ Being compatible with CORELDRAW, AUTOCAD, PHOTOSHOP, etc.
♦ Supporting PLT, PCX, DXF, BMP, etc, SHX, TTF etc of word stock can be used directly.
♦ Supporting automatic coding, serial number, batch number, date, bar code, QR code, automatic number jumped, etc.
♦ Graph, Chinese characters, number, English letters etc can be designed freely.
FAQ
1 How is the packing?
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
2 How could I know if this machine is suitable for me?
Before ordering, we will provide every detail of the machine for your reference, or you could tell us your detailed requirements, our technician will recommend the most suitable machine for you. Furthermore, we can make a sample in advance for you to check if your drawing is provided.
