II-VI Focusing Lens — USA CVD ZnSe
Meniscus lenses are designed to minimize spherical aberration producing a minimum focal spot size for incoming collimated light.
II-VI Infrared is the world leader in laser optics, delivering an unbeatable combination of innovation, quality, and expertise.
II-VI Infrared also delivers the largest vertically integrated CO2 laser optics manufacturing process — from raw materials to finished coated products — in the world.
Product Structure
 |
High-quality ZnSe crystal USA CVD ZnSe material Up to 300W CO2 laser resistance |
| High precision process
Precise sling, polishing, grinding processes High temperature, laser resistance |
 |
 |
High Transmittance 99.5%
High quality material and exquisite coating reduce the loss of laser |
|
Superb Coating Process
Doble-sided solid coating Wipeing resistance extended durability |
 |
Product Size

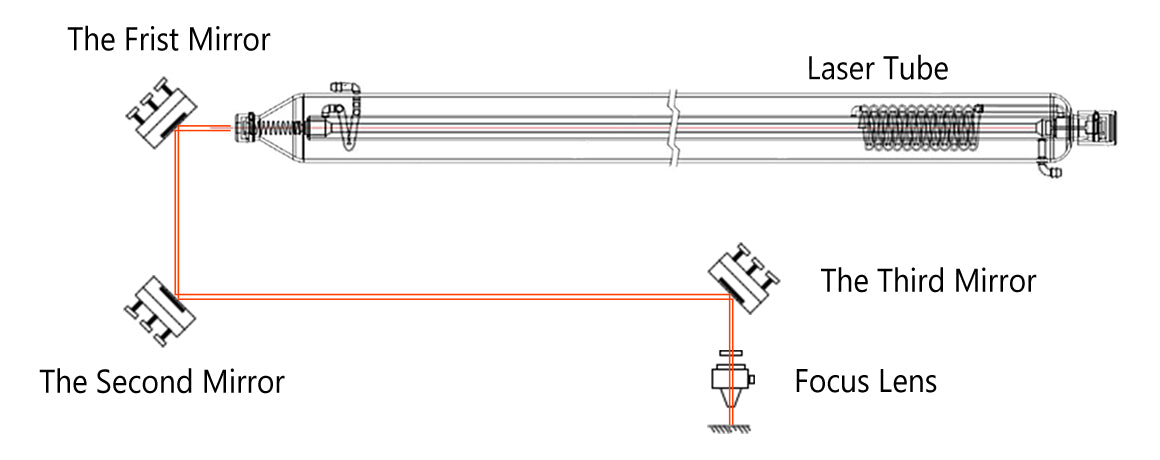

Laser Path
How to determine focal length
Diameter |
38.1mm(1.5″) |
50.8mm(2″) |
63.5mm(2.5″) |
76.2mm(3″) |
101.6mm(4″) |
19.05mm |
Plano convex |
Plano convex |
Plano convex |
– |
– |
20mm |
Plano convex |
Meniscus |
Meniscus |
Meniscus |
Meniscus |
Material: USA CVDZnSe |
Wavelength:10.6um |
||||
Diameter:12,18,19.5,20,25mm |
Diameter Tolerance:±0.1mm |
||||
FocusLength:1.5,2,2.5,3,4,5inches |
Focus Length Toleance:±2% |
||||
Transmittance:99.5% |
Clear Aperture(Polished)>90% |
||||
AR CoatingReflectivity<0.3% |
Scratch-Dig:20-10 |
||||
Raylasers Test Process
Clean instructions
1.Use an air bulb to blow off any loose contaminants. (dust, lint particles)
2.Squeeze a few drops of acetone onto the lens tissue, wetting the complete optic’s diameter. (smudges, fingerprints)
3.Using the cotton swab and distilled vinegar, wipe the lens. Immediately use a wet cotton swab to remove any acetic acid, then clean with a clean dry cotton swab. (spittle, oils)
Packaging
