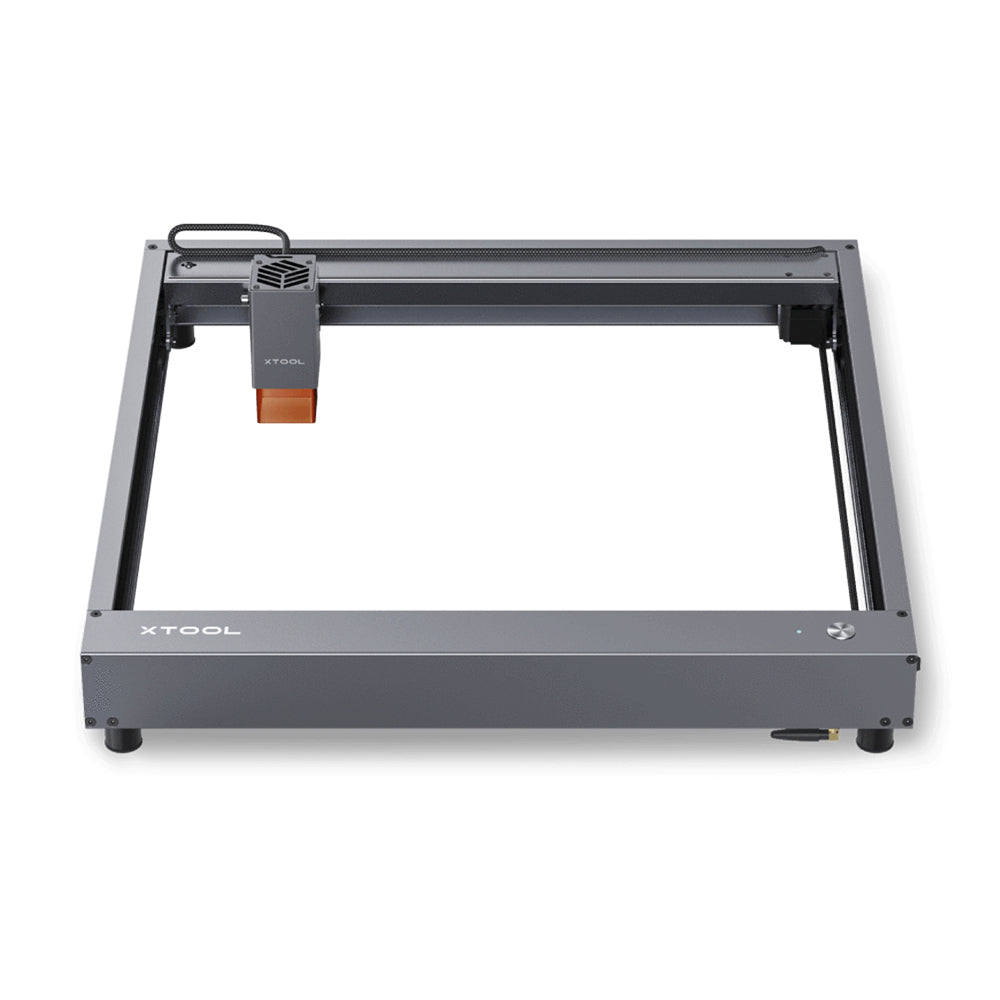

Meet xTool D1
What can you do with xTool Laserbox D1?

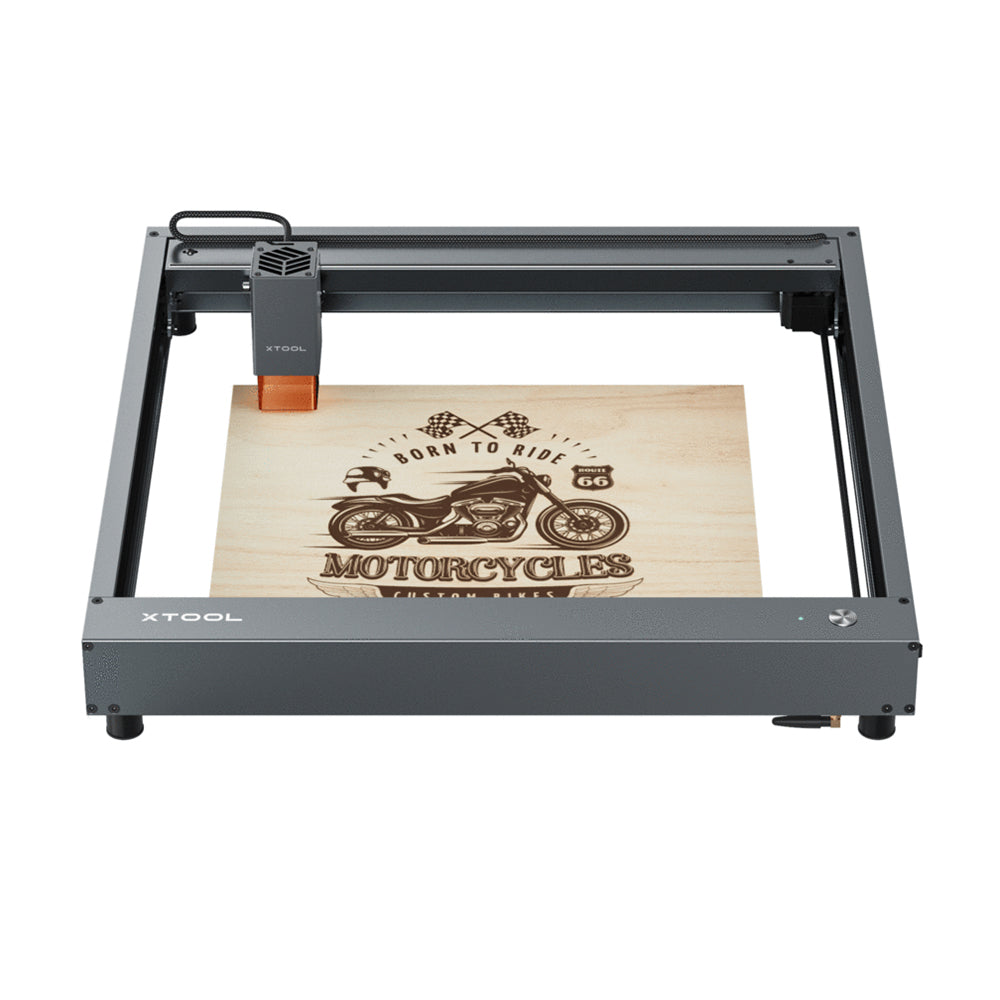

 Flat Engraving |
 Flat Cutting |

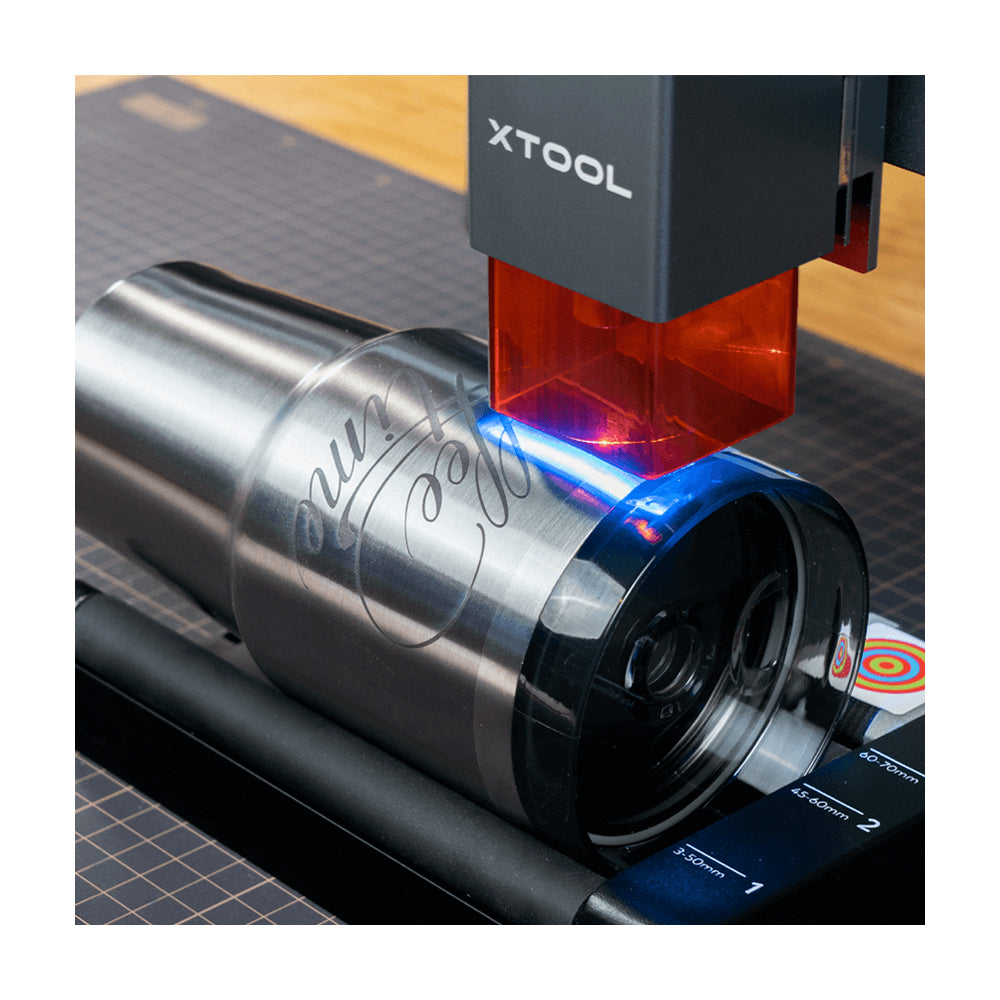

 Rotary engraving |
Explore what’s possible
Better Mechanical Design Increases Accuracy
Industrialized steel wheel&shaft
Also making D1 longer product lifetime.
Higher accurate
?
Tension wheel & Synchronous belt
Higher accurate even at high processing speeds
Higher Repeat Positioning Accuracy

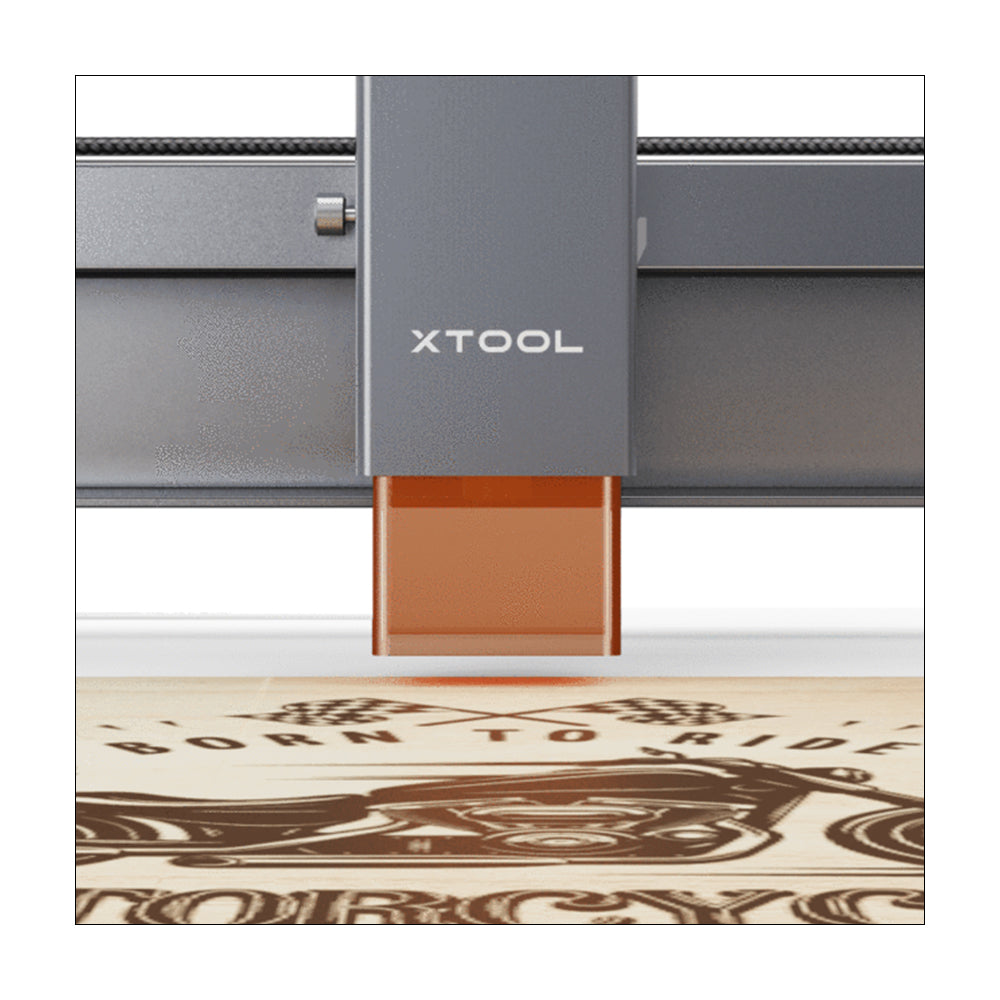

Better Laser Enhances Cutting & Engraving Effect
?The ultra-fine laser focus area
?Innovative Dual Beam Design
?More Function
?Better Software at Your Service
xTool Software: Supports multiple devices and multiple formatsEquipped with specialized software, xTool D1 allows you to work seamlessly on Windows / macOS / Android / iOS devices. If you need to control xTool D1 through LightBurn, download the official release of the LightBurn software. LightBurn is third-party software, and therefore Makeblock Co., Ltd. shall bear no responsibility for any loss caused due to the operation of LightBurn. The firmware of xTool D1 has been tested in detail by Makeblock Co., Ltd, but incompatibility with the software or hardware may still occur. If errors occur due to incompatibility, you can contact our after-sales service for technical support. |
 |
?
 |
Easy focus adjustment Newly designed laser module adjustment function. The laser module can be adjusted up and down to fit various thicknesses of materials through slots and screws. The original focus lever enables easy autofocusing. |
|
Modular Construction Assemble the machine in about 10 minutes.? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Easy to assemble and?easy to disassemble.? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? The device weighs less than 6 kg and is portable and easy to carry. |
 |
?
Better Design and More User Friendly
PARTS LIST
?
 |
Package Included1 x 12V 7A Power Adapter |
Unleash your creativity on hundreds of finest materials, and it shows!
 |
 |
 |
 |
Specs

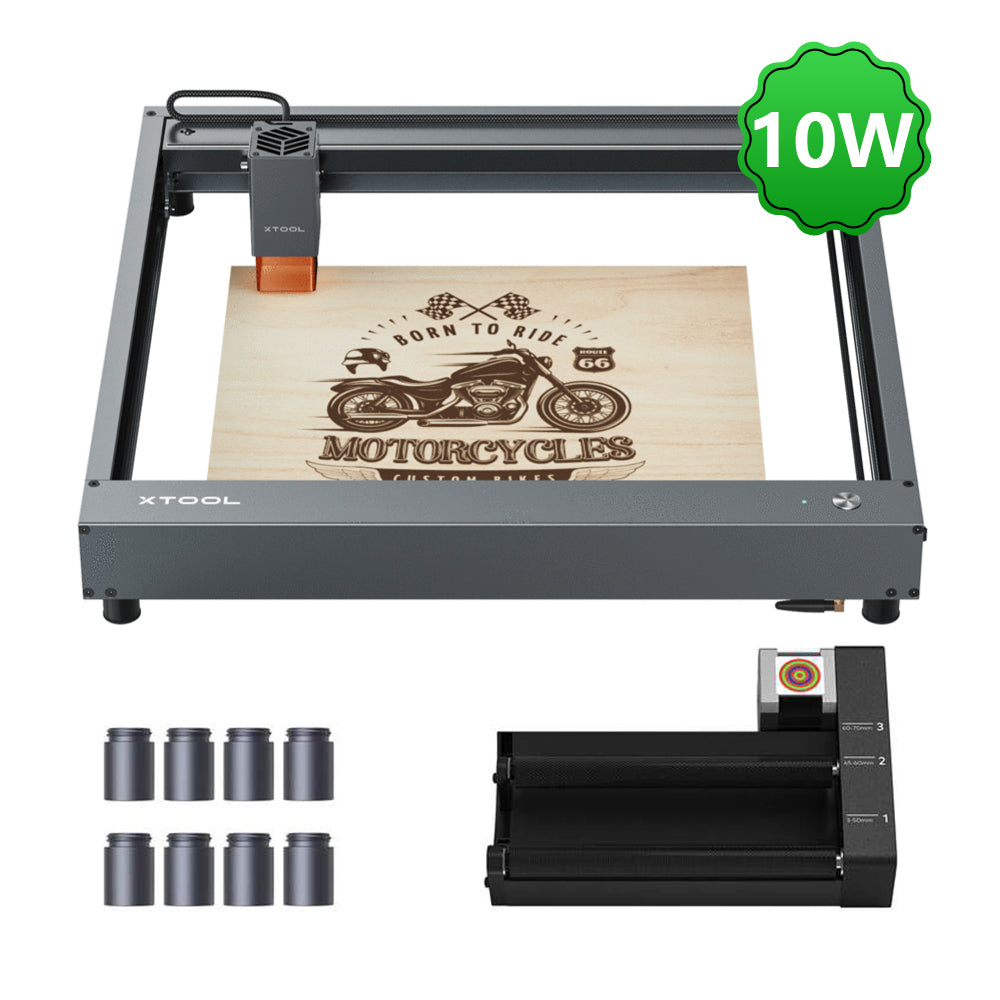

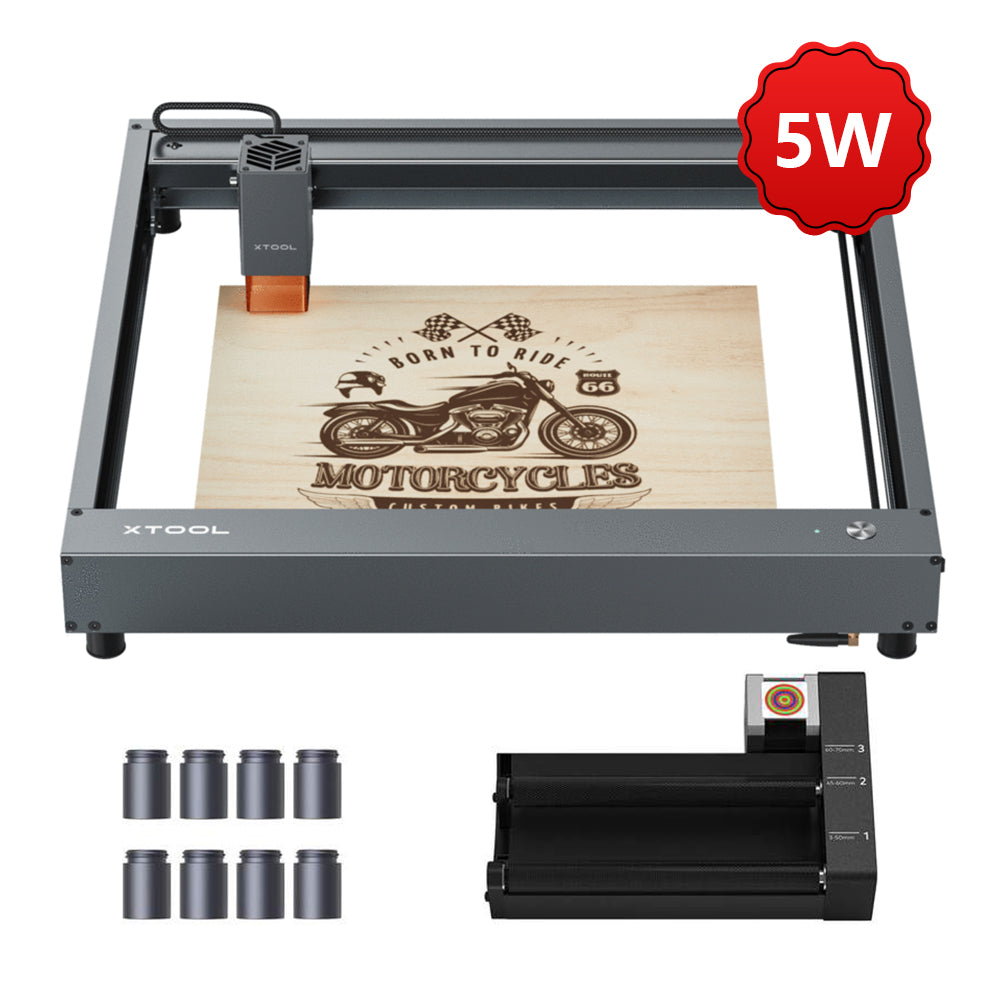

| MODELS | xTool D1 – 5W | xTool D1 – 10W (Best Seller) |
| LASER SYSTEM | ||
| Machine Power | 36W | 60W |
| Laser Electric Power | 25W | 40W |
| Laser Module Output Power | 5W | 10W |
| Laser Spot | 0.08? mm | same |
| Wavelength | 450 – 460 mm | same |
| Routing Speed | 160 mm/s | same |
| WORKING AREA | ||
| Working Area | 432 * 406 mm (17 * 16 inch) | same |

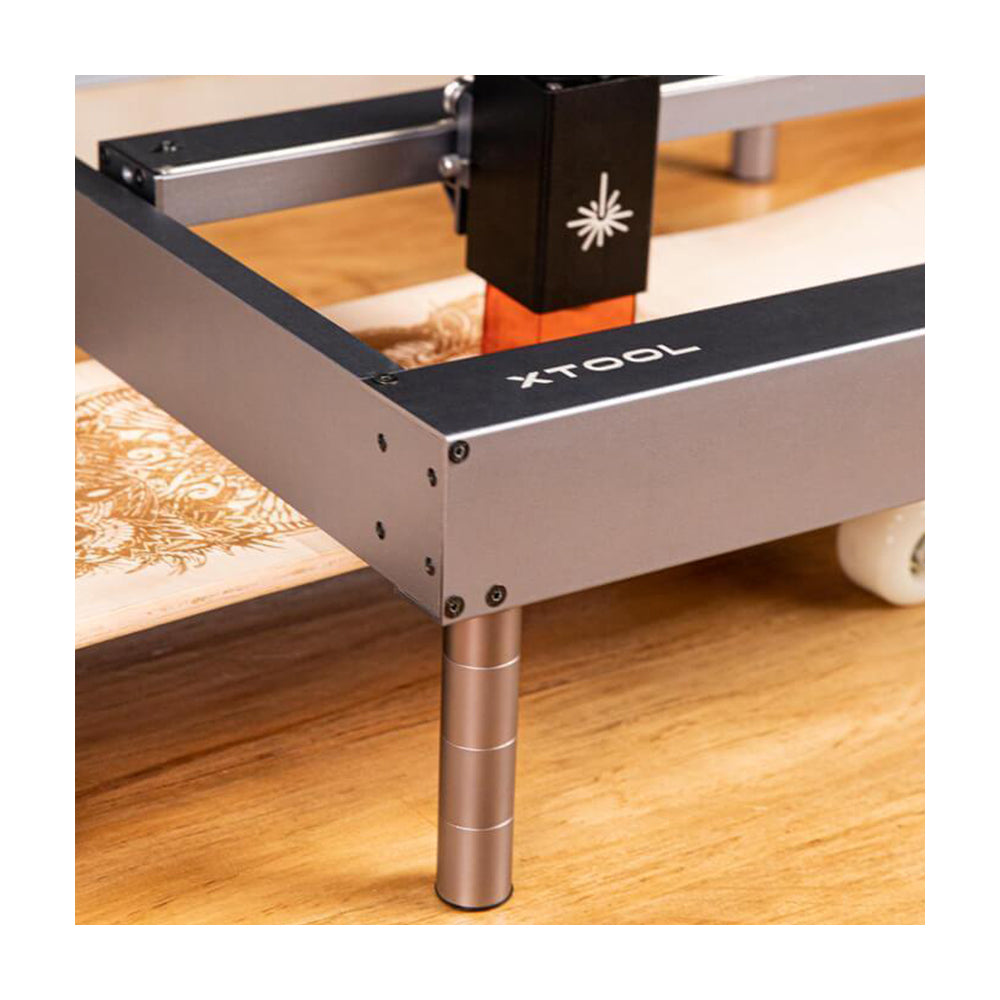

| Max. Workpiece Height | 50 mm | same |
| MISCELLANEOUS | ||
| Voltage Input | 100-240V? 50-60HZ | same |
| Voltage Output | 12V? 7A? 84W | same |
| Connecting Interfaces | USB/Wi-Fi | same |
| Certification | FCC/FDA | same |
| SOFTWARE REQUIREMENTS | ||
| Operating Systems | Windows/macOS/Android/iOS | same |
| Control Software | Laserbox Software/ Laserbox App | same |
| File Type(s) | SVG/DXF/JPG/JPEG/PNG/BMP/TIF/CR2, etc. | same |
| SIZE AND WEIGHT | ||
| Product Weight | 5kg | |
| Package Weight | 6kg | |
| Product Size (L * W * H) | 600*590*150 mm | same |
| Package Size (L * W * H) | 620*345*130 mm | same |
?
Applicable Materials
